Description
About this item

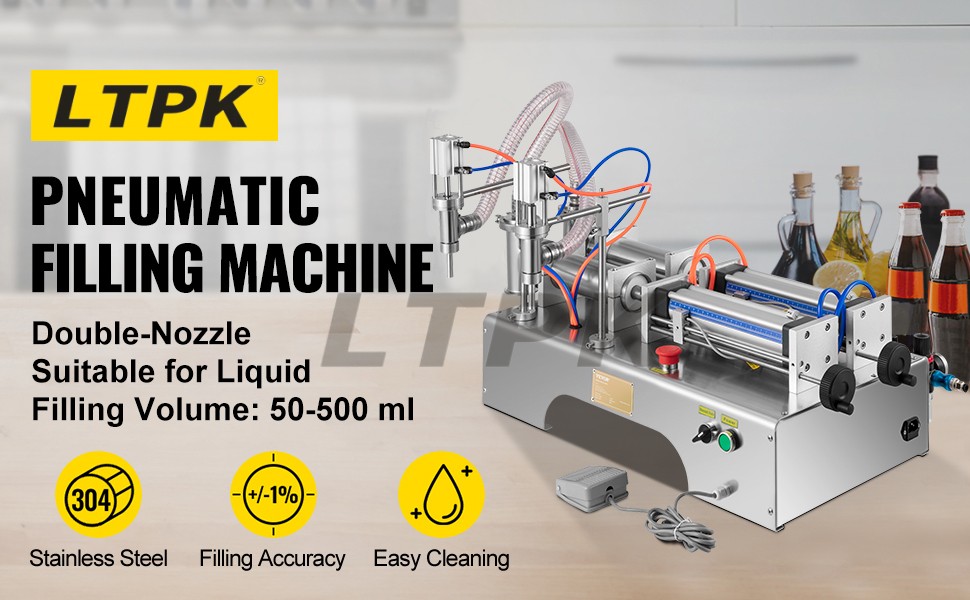

Accurate Pneumatic Filling: Our liquid filling machine is equipped with an excellent air cylinder, ensuring the precision of filling, Filling accuracy:≤±1 % . In order to meet your various filling needs, adjustable speed and volume are necessary for this machine. Filling volume: 1.7-16.9 oz/50-500 ml; Filling speed: 0-60 bottles/min.
Auto & Manual Control: Two control modes help you operate the machine efficiently. Pedal once and discharge once in manual mode while filling continuously in auto mode. With the advanced air pressure gauge, you can observe the pressure changes at any time and stop the machine if something goes wrong.
Stainless Steel Structure: Pneumatic filling machine is made of 304 stainless steel food-grade materials, which can endure corrosion, rust, acid, and alkali. The anti-drip nozzle is designed to avoid leakage and save more liquid during operation.
Well-Designed Details: Pneumatic filling with a delicate filling device, including conveying pipe and non-return valve. The soft valve has an excellent non-return effect; make sure the liquid can be transferred to the pipe without blocking and filling successfully in the end.
Extensive Uses: This lip gloss filler machine is widely used in pharmaceutical, cosmetic, food, pesticides, and particular industries and is suitable for low-viscosity fluid and liquid filling. This product needs to work with an air compressor(not offered). Therefore, you need to prepare it in advance.
Technical Parameters
- Model: Liquid Filler 50-500 ml
- Power Voltage: 110V / 60 Hz
- Material: Stainless Steel
- Filling Volume: 1.7-17 oz / 50-500 ml
- Filling Head: Double-Nozzle
- Applicable Pressure: 0.4-0.6Mpa / 58-87Psi
- Filling Speed: 0-60 bottles/min(it depends)
- Nozzle Diameter: 0.39 in / 10 mm
- Air Pipe Diameter: 0.31 in / 8 mm
- Accurate: ≤ ±1 %
- Product Size: 38.2 x 15.7 x 15.7 in / 97 x 40 x 40 cm
- Net Weight: 84 lbs / 38 kg
Machine Details

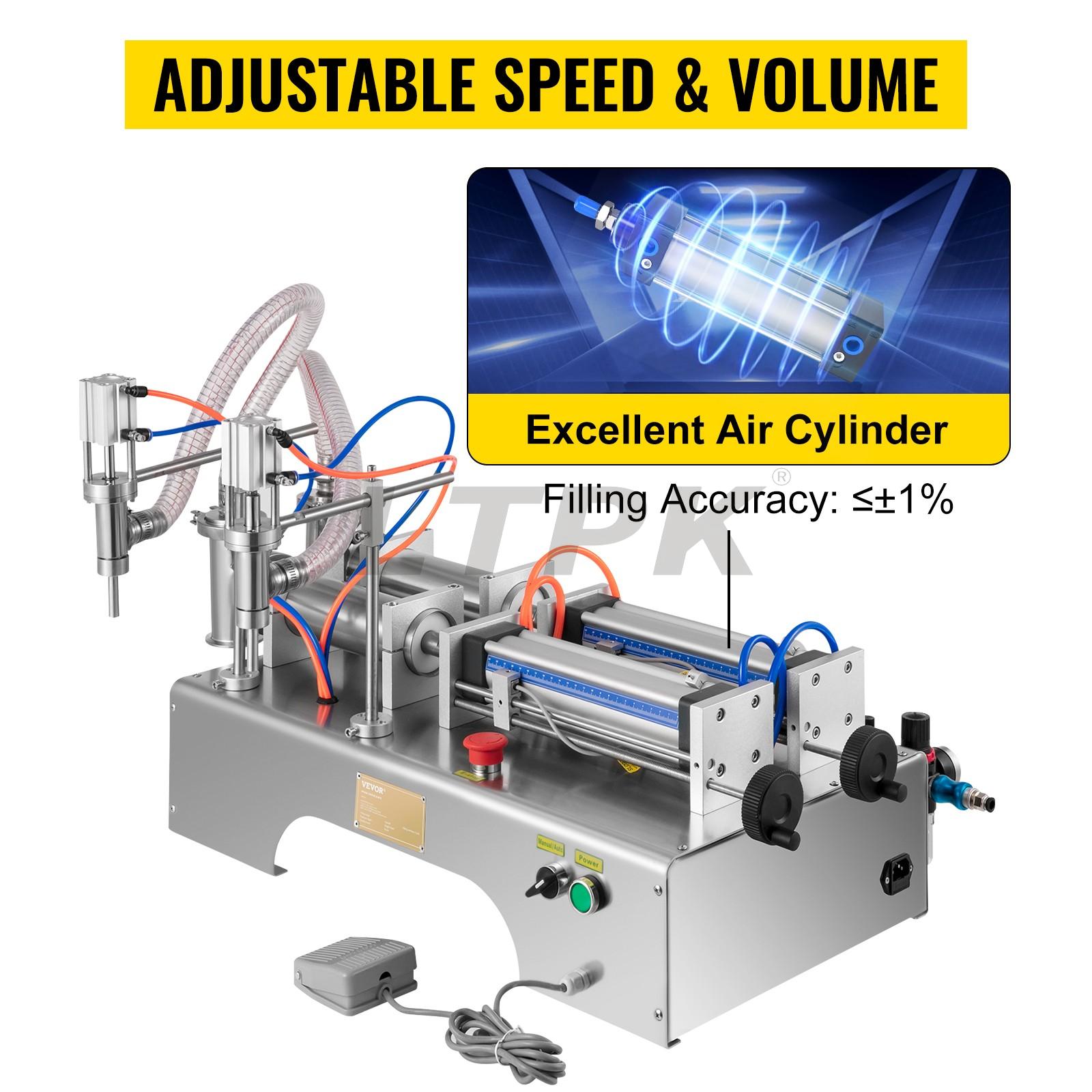

Adjustable Speed & Volume
This liquid and paste filling machine adopts a premium gas cylinder, having immense power and stable air pressure. Filling volume and speed can be arbitrarily regulated. The filling range is 1.7-16.9 oz/50-500 ml, and the filling rate is 60 bottles/min in maximum.

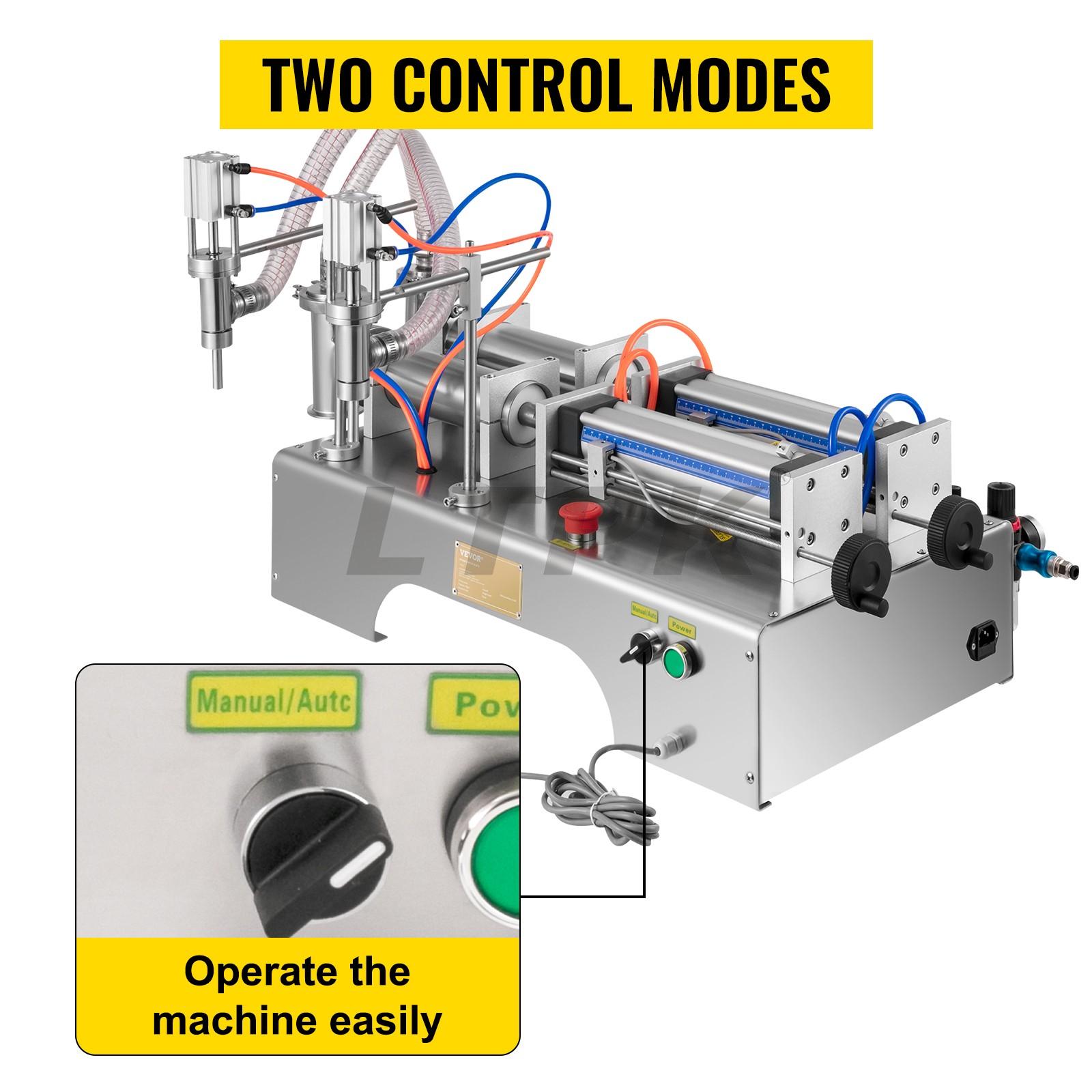

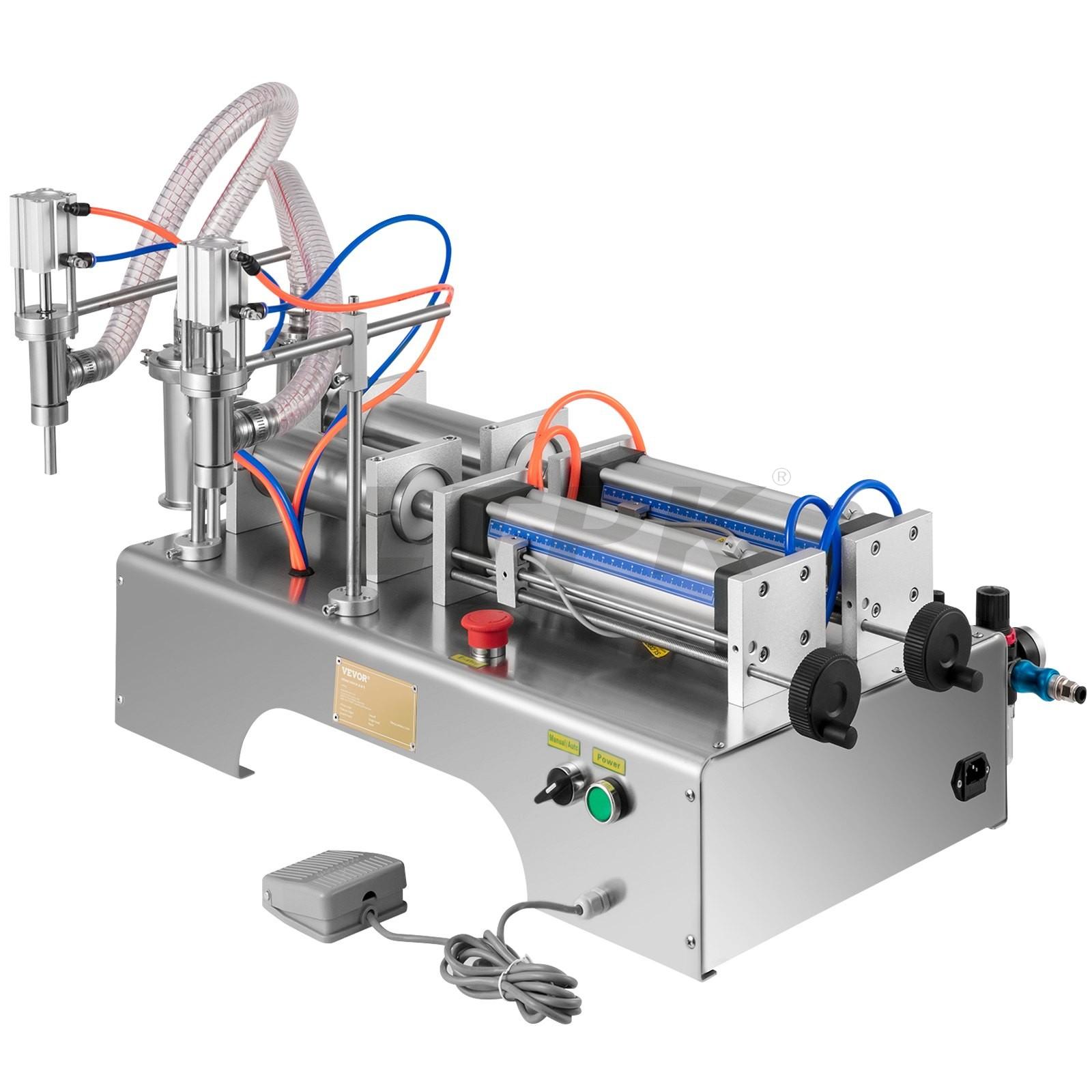

Two Control Modes
Two control modes can be chosen in our pneumatic filling machine. Manual and auto mode are switchable. Adjust the cylinder housing speed knob, switch to auto mode, and the filling machine will automatically fill. Or switch to manual mode and press the pedal to fill. The device can stop and start at any time because of the emergency stop switch.

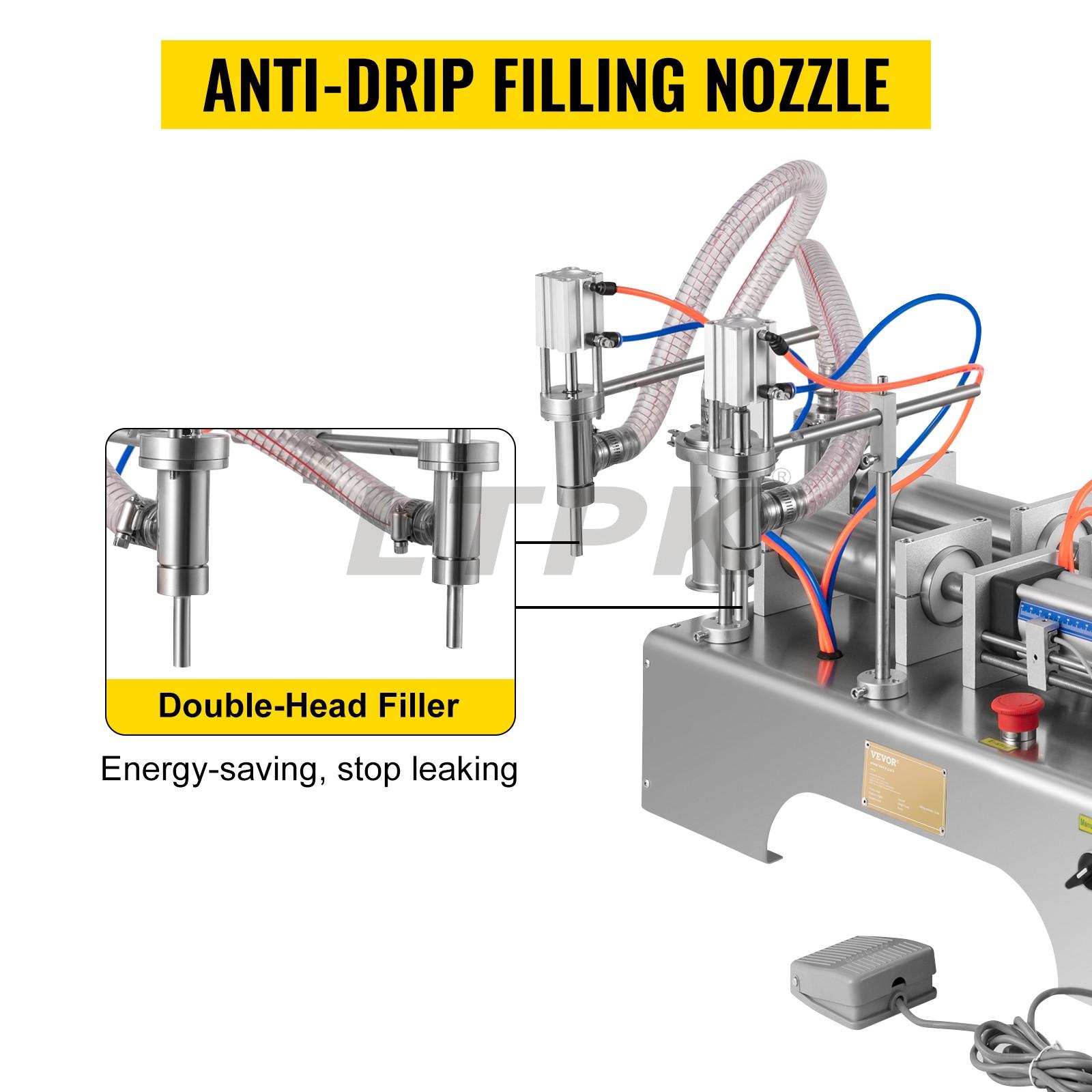

Anti-Drip Nozzle
The outlet nozzle can be easily removed and replaced. Raising and filling device with an anti-drip nozzle, not easily plugged, the filling process is efficient and accurate. They are filling accuracy:≤ ±1 %.

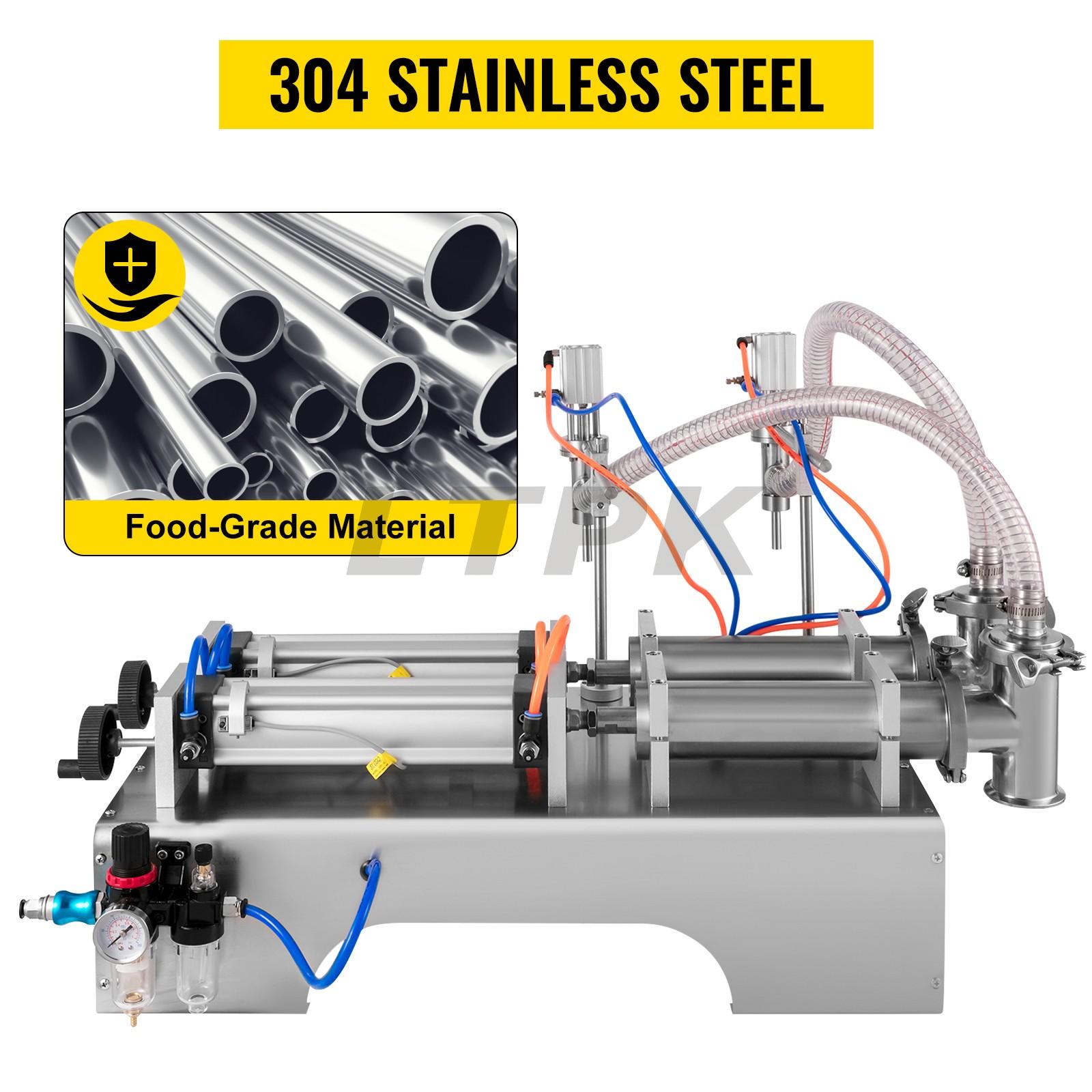

304 Stainless Steel
All parts in contact with the product are 304 food-grade stainless steel. Extremely easy to operate, clean, and maintain. It's endure to corrosion, acid, and alkali. Thickened base and Teflon plunger have a high quality.

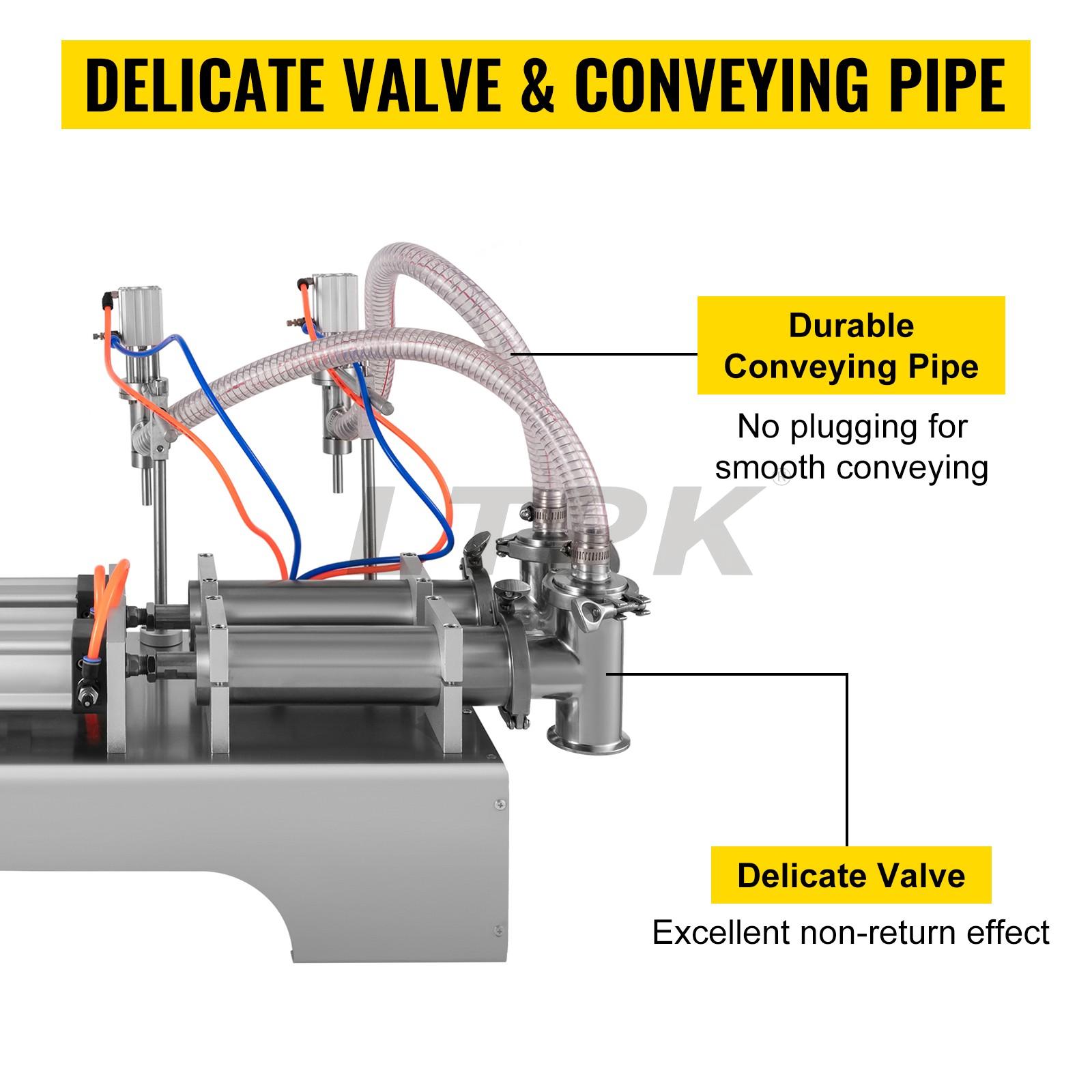

Delicate Valve & Conveying Pipe
A delicate non-return valve has an excellent non-return effect. The inner part is made of Teflon material. It is easy to dismantle and maintain. A premium conveying pipe is durable for long service life.
Wide Application
Our filler is extensively used in the food and beverage, cosmetics, personal care, agricultural, pharmaceutical, and chemical fields. An ideal device for low viscosity fluid and liquid filling. The machine should connect the air compressor for working.

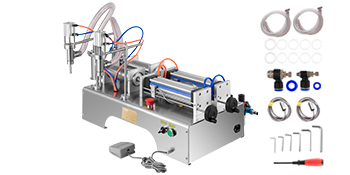

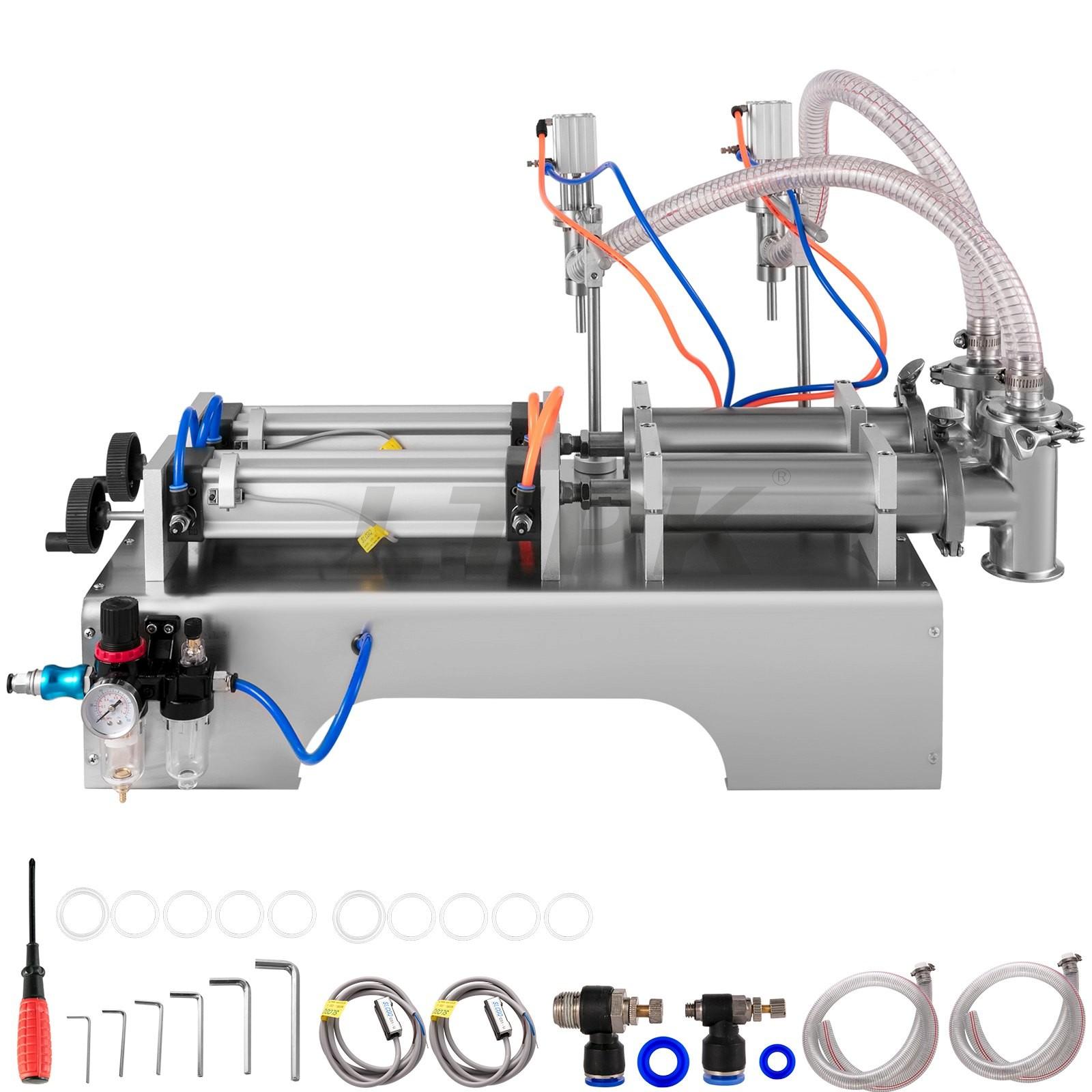

Package Content
- 1 x Pneumatic Liquid Filler
- 1 x Piezometer
- 6 x Screwdrivers
- 1 x Foot Pedal
- 10 x Spacer Sheets
- 2 x Power Cord
- 2 x Pipes
- 1 x Kit of Accessories
