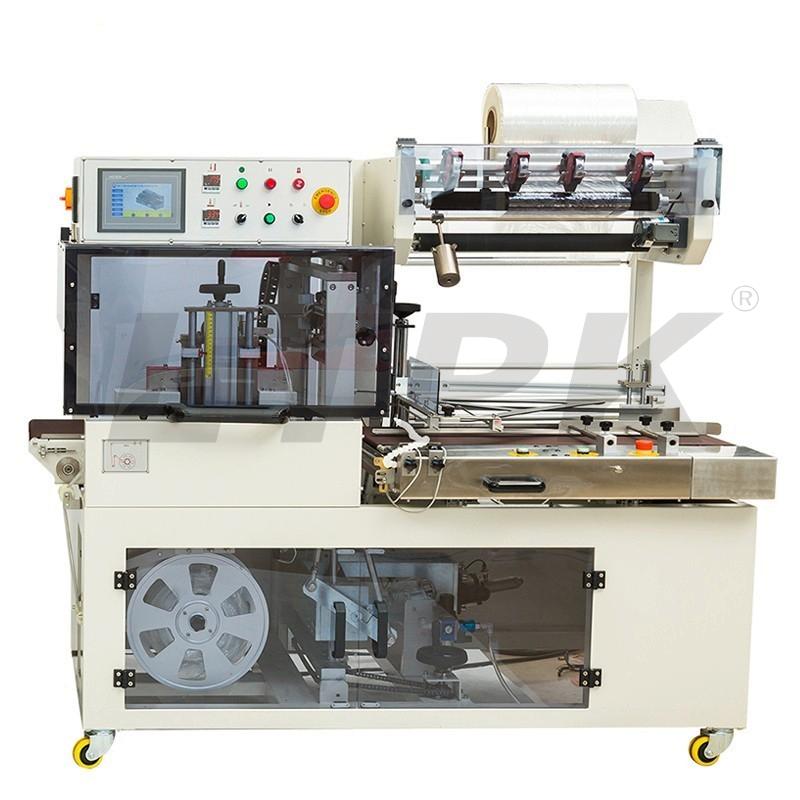

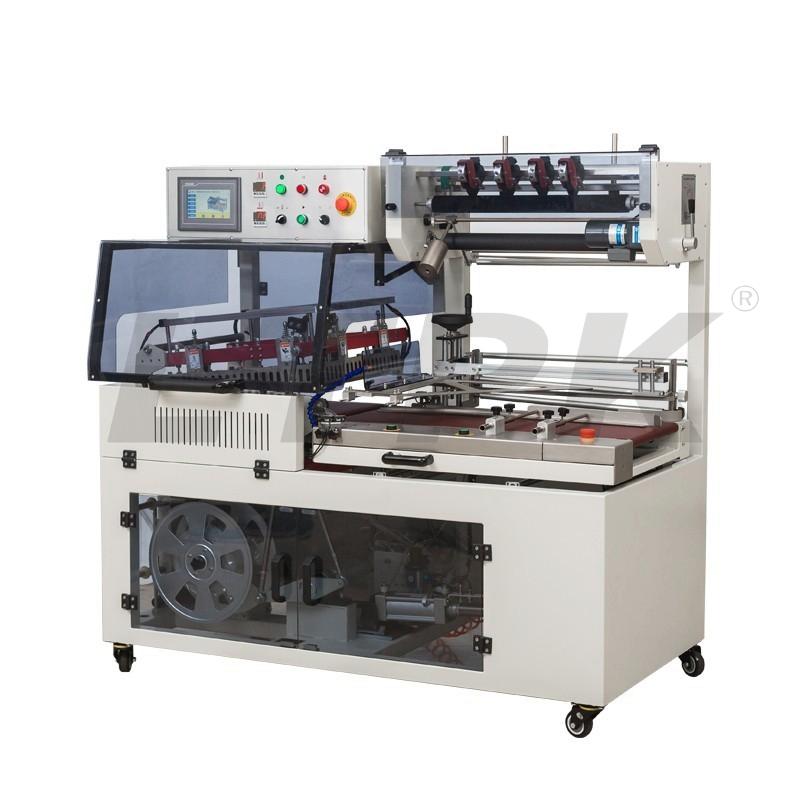

DQL4518S High speed automatic side sealer sealing packaging machine

DQL4518S High speed automatic side sealer sealing packaging machine

Product Item：DQL4518S

Max sealing size(㎜) W450

Max packing size(㎜) L ∞, W+H<380, H<180

Capacity 0-35 pcs/min

Voltage 220V 50/60HZ

Category：L sealer Machine

Description

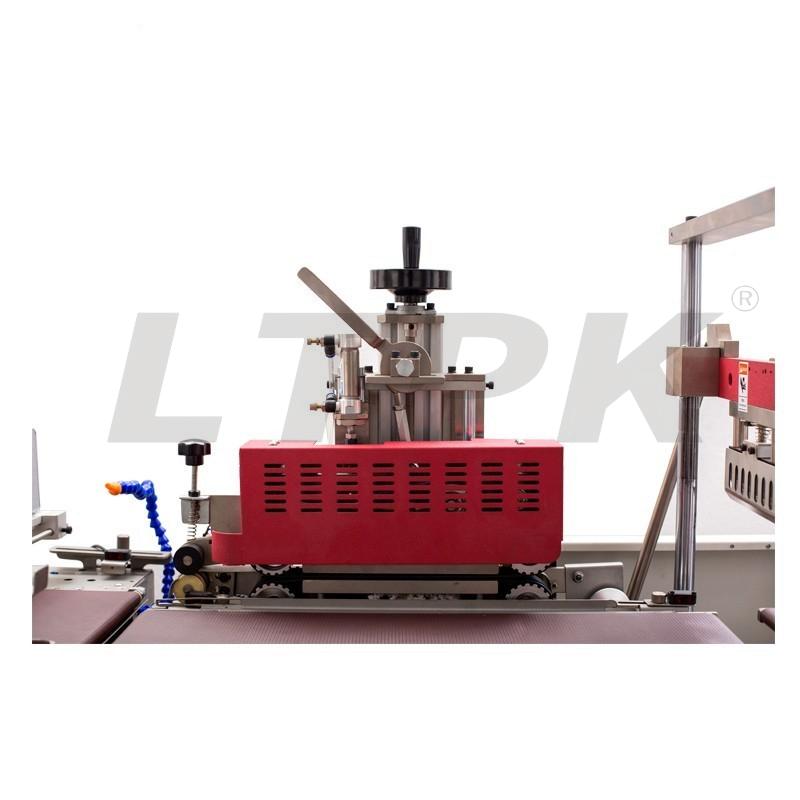

The DQL4518S operates similarly as the DQL5545G above.The difference being that on this machine the boxes/product can be of random lengths.The side seal mechanism is continuous whereas the QL5545 has an L-sealer.This machine is ideal to pack photo frames,aluminum plates,plastic piping,corning,skirting boards,wood products etc.The ideal shrink tunnel for the DQL4518S is the DSC4525L which uses an advanced hot air circulation system for superior shrinking results and the speed of the conveyor can be set to the appropriate speed for the line.

Model	DQL4518S
Max packing size(㎜)	L ∞, W+H<380, H<180
Max sealing size(㎜)	W450
Power(KW)	2.50
Capacity	0-35 pcs/min
Voltage	220V 50/60HZ
Sealing temperature	Horizontal sealing bar: 140℃-180℃, Side sealing bar: 180℃-250℃
Thickness of film(mm)	0.015-0.10
Air pressure(Kg/cm2) )	5
Packing material	POF PVC
Machine weight(㎏)	350
Machine size(㎜)	L1800×W950×H1580
