Description
DESCRIPTION

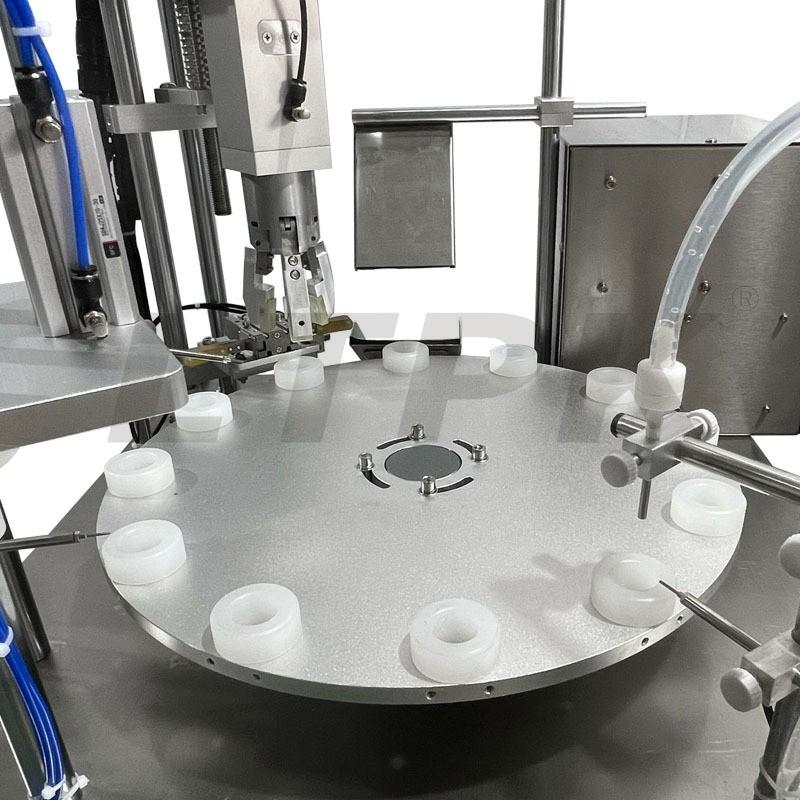

Designed with a magnetic pump, the filling and capping machine can accurately fill the liquid. Also, it can be assembled with a labeling machine to realize automatic production. It is small in size, which is space-saving and portable.
APPLICATION
This machine is suitable for filling liquid in small volumes, such as beverages, essential oil, milk, etc.
PARAMETER
Machine Model | LT-AFC1S |
Voltage | 110/220V |
Machine Pump | 316 Stainless Steel Magnetic Pump |
Machine Power | 1200W |
Bottle Diameter | 10-40mm |
Filling Range | ≤100ml |
Bottle Height | ≤120mm(Can customize for higher bottles) |
Cap Diameter | Customize |
Size of Filling Nozzle | OD 8mm |
Working Speed | 20-50bottles/min(depend on liquid and bottle size) |
Conveyor Belt Size | About 640*80mm |
Machine Size | About 580*580*1080mm |
Machine Weight | About 75kg |
Package Size | About 720*620*1090mm |
Package Weight | About 97kg |
