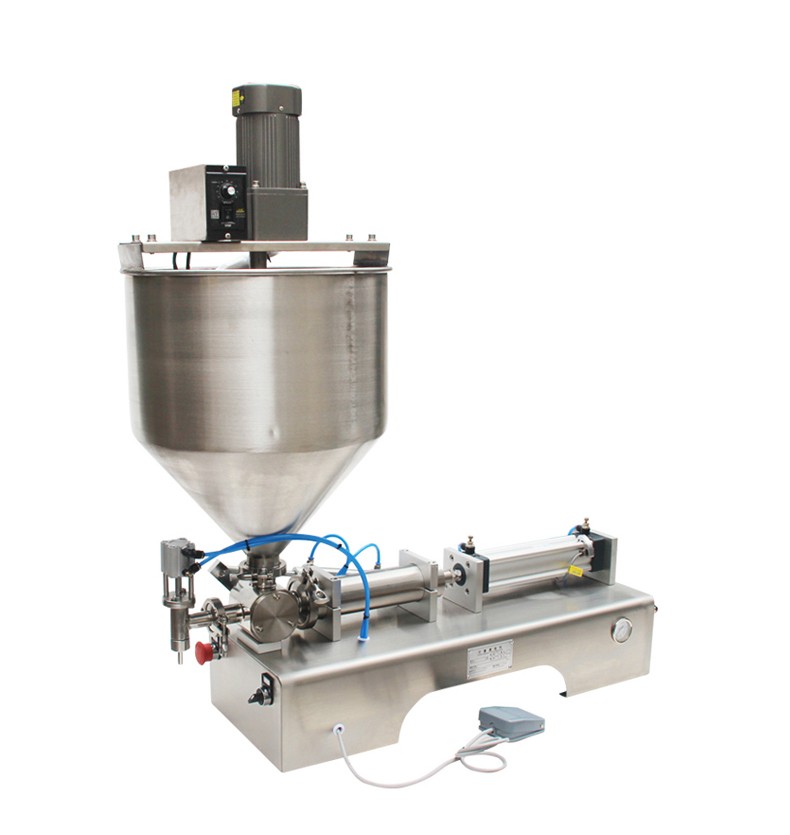

LT-GTJH1 Viscous Material Filling Machine

LT-GTJH1 Viscous Material Filling Machine

Product Item：LT-GTJH1

Filling accuracy ≤±1%

Filling speed 20-40Bottle/min(take water for example)

Equipped with air pressure 0.4-0.6 MPa

Hopper size 30L

Category：For Paste

Description

Products Description

Description：
This series filling machine is foreign advanced filling machine technology transformation and innovative products,its structure is simple and reasonable precision,easy to operate,user-friendly design more in line with the requirements of the modern enterprise.Widely used in pharmaceutical,cosmetic,food,pesticides and special industries,is a high-viscosity fluid,paste
quantitative filling the ideal equipment.

Technical Parameters

Model	LT-GTJH1（10-100ml)
Voltage supply	220/110V 50/60Hz
Filling accuracy	≤±1%
Filling speed	20-40Bottle/min(take water for example)
Filling volume	10-100/10-200/30-300/50-500/100-1000/500-2500/1000-5000ml
Equipped with air pressure	0.4-0.6 MPa
Hopper size	30L
Package size	About 1140520350mm（Machine） About 450450580mm（Hopper）
Gross weight	About 51kg（Machine） About 25kg（Hopper）
