LT-GZL320C Automatic Spray Bottle Chemical Liquid Filling Capping Machine Line With Vibratory Bowl

Home Products Full Automatic Production Lines Machine LT-GZL320C Automatic Spray Bottle Chemic

LT-GZL320C Automatic Spray Bottle Chemical Liquid Filling Capping Machine Line With Vibratory Bowl

  • Product Item：LT-GZL320C
  • Maximum flow velocity 6000ml/min (Each nozzle and based on water )
  • Working speed 20-30 bottles/min
  • Conveyor Length 1110mm
  • Size of air compressor connector OD 8mm
  • Category：Full Automatic Production Lines Machine
    • Inquiry Send Email

    Description

    Product Description
    Description：

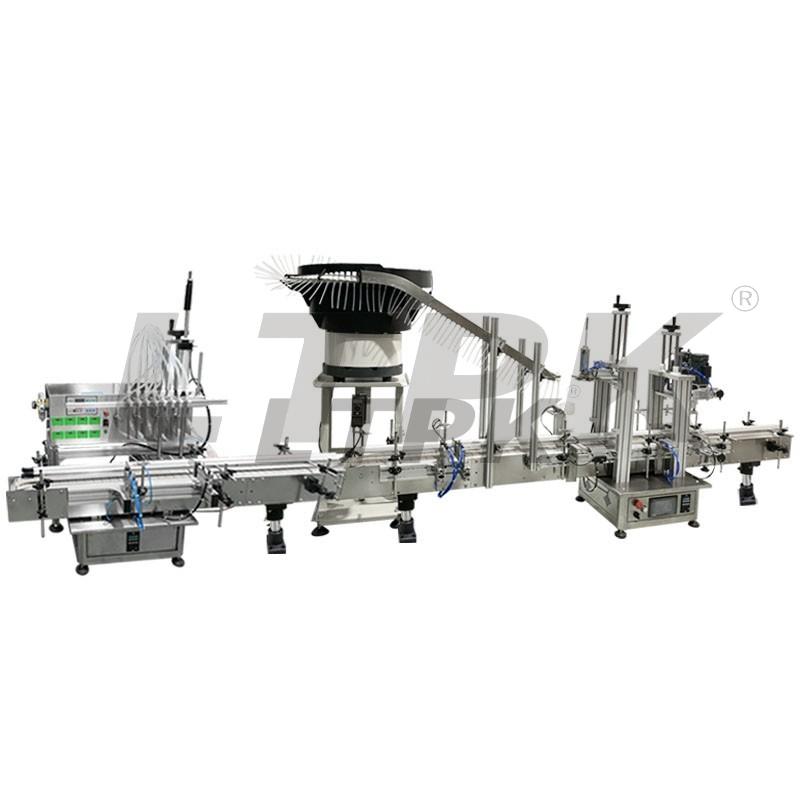

    This production line is suitable for small scale production,can fill liquid,cap bottles and label stickers automatically.These desktop type machines can save working space and help you improve working efficiency greatly.It is widely used in food,beverage,cosmetics,daily chemical industries.

    Technical Parameters

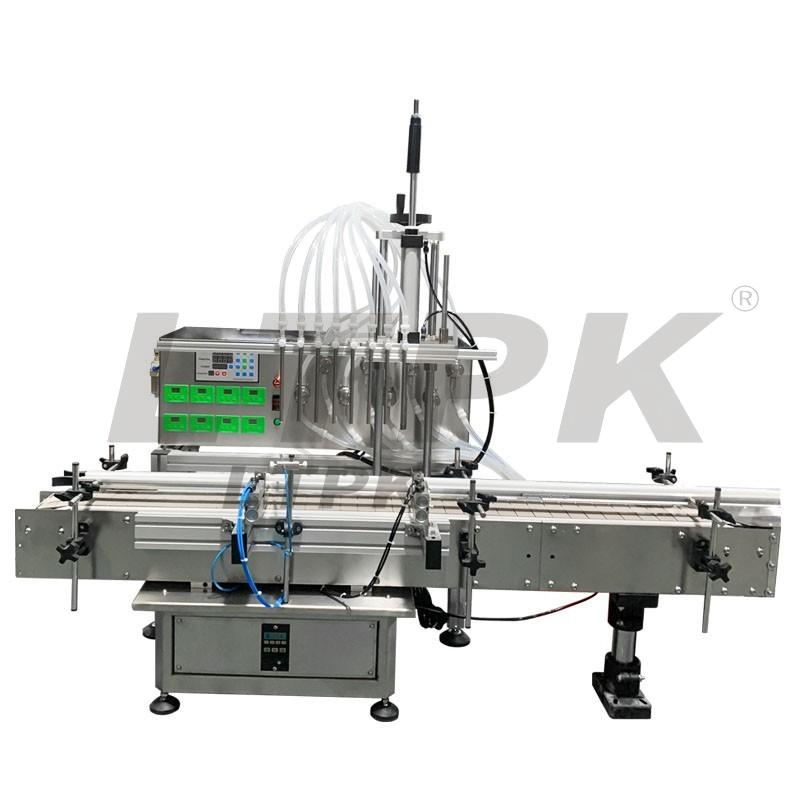

    >>>Filling Machine
    Machine model
    LT-MPF4H
    Power supply
    110/220V 50-60HZ 300W
    Maximum flow velocity
    6000ml/min (Each nozzle and based on water )
    Working speed
    20-30 bottles/min
    Air pressure
    0.3-0.4mpa
    Filling accuracy
    ≤±1%( for water)
    Delay range
    0.01s-999.9s
    Count range
    1-99999 times
    Size of air compressor connector
    OD 6/8mm
    Package size
    About 1150*650*820mm
    Net weight/Gross weight
    About 59kg/89kg
    LT-GZL320C Automatic Spray Bottle Chemical Liquid Filling Capping Machine Line With Vibratory Bowl

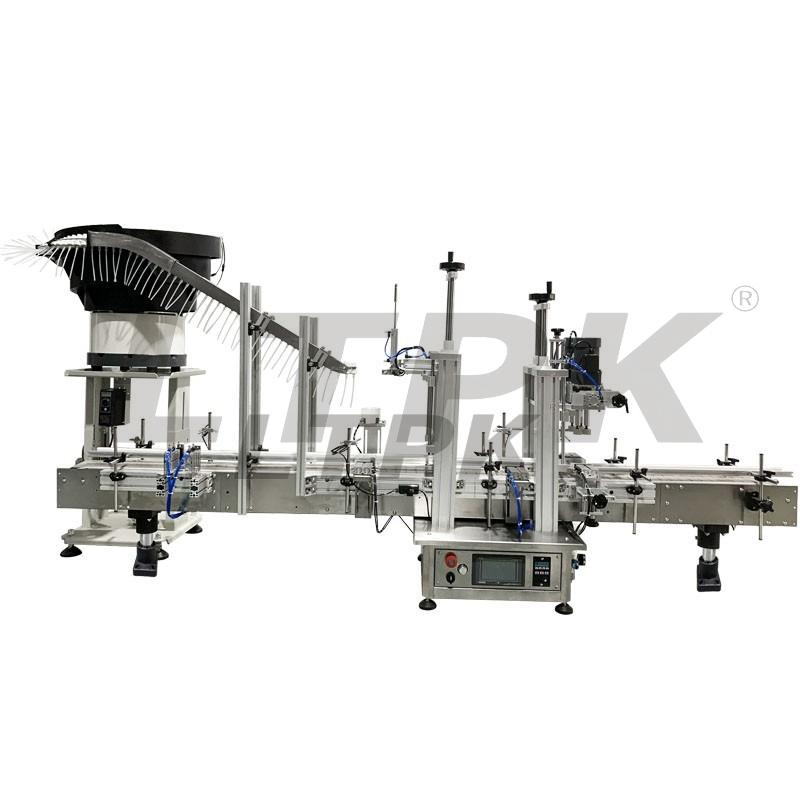

    >>>Capping Machine
    Bottle Height
    60- 270mm
    Bottle Caps Diameter
    18-70mm
    Working Speed
    20-40 bottles/minute (depending on bottle and caps)
    Working Voltage
    AC220V/110V 50-60HZ
    Working Pressure
    0.4-0.6 MPa
    Conveyor Length
    1110mm
    Net weight/Gross weight
    About 65.5kg/97.5kg
    Machine Size
    About 1120* 580* 1110mm
    Package Size
    About 1160*610*1140mm
    Size of air compressor connector
    OD 8mm
    LT-GZL320C Automatic Spray Bottle Chemical Liquid Filling Capping Machine Line With Vibratory Bowl
