Description

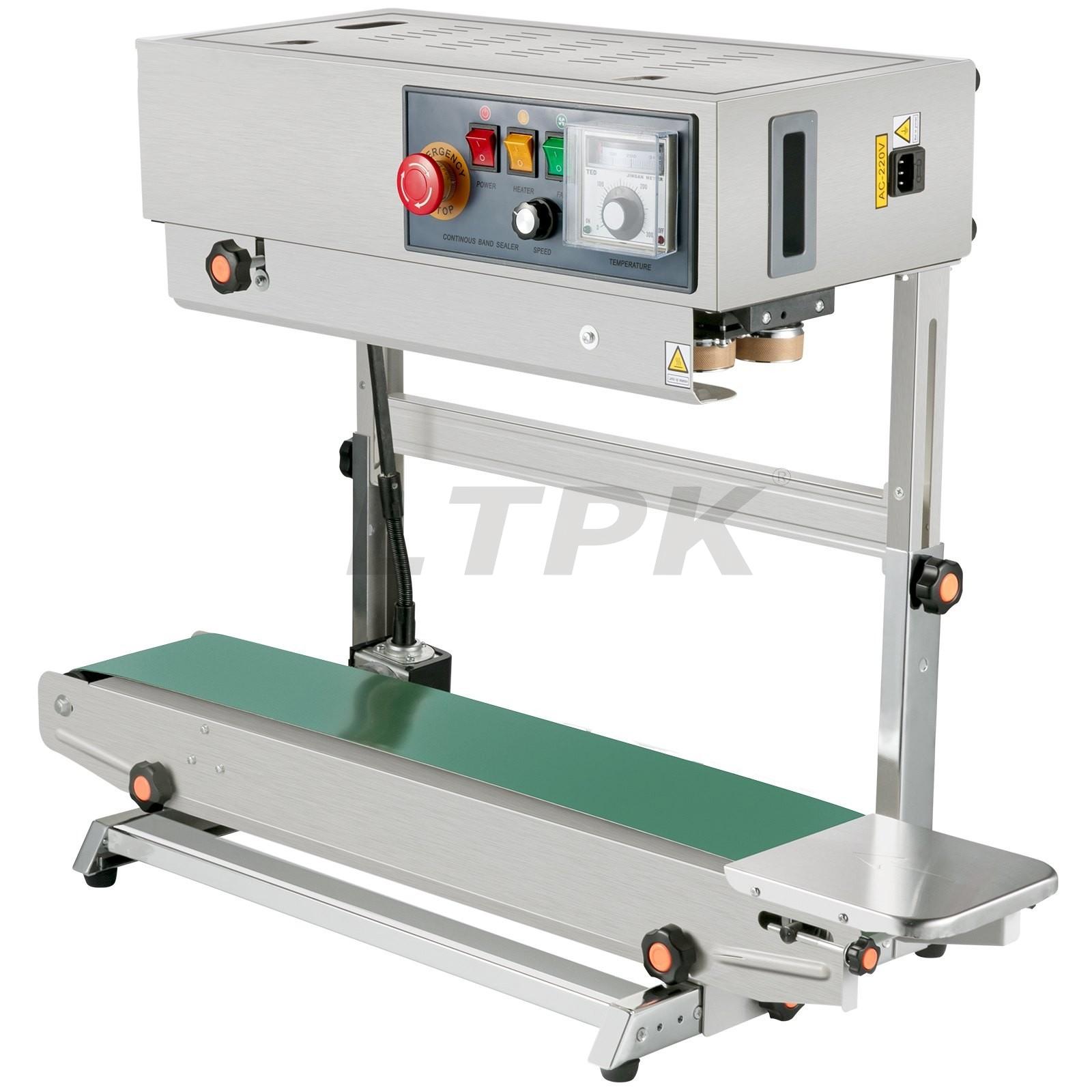

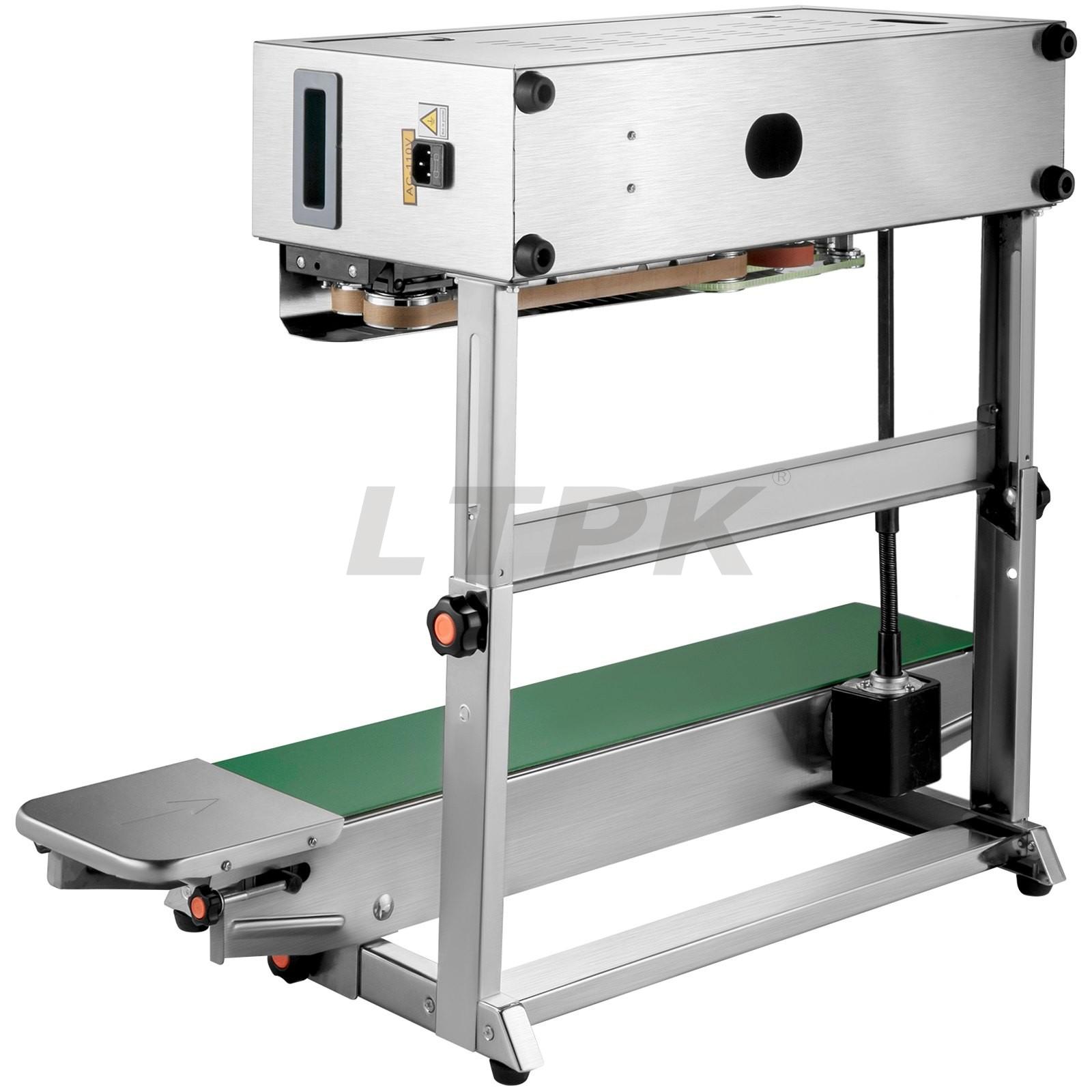

Vertical Continuous Band Sealer
Powerful Sealing & 0-16 m/min Speed & Automatic Control
This continuous sealing machine is designed for sealing and bag-making of various plastic and compound films. Therefore, it is able to print the logo, date when sealing. The premium sealing and automatic design mean that the machine is a piece of ideal equipment for the pharmaceutical, food industry, daily cosmetics.
Specifications
- Model: FRB-770
- Power: 700W
- Pattern: Vertical
- Voltage: 220V/50 Hz
- Seal Width: 0.24-0.59 in / 6-15 mm
- Sealing Speed: 0-16 m/min
- Sealing Thickness: 0.0008-0.03 in / 0.02-0.08 mm
- Temperature control range: 0 - 400 °C / 32 ℉ - 752 ℉
- Conveyor Load: Max. 11 lbs / 5 kg
- Number of printing: ≤39pcs
- Motor Power: 80W

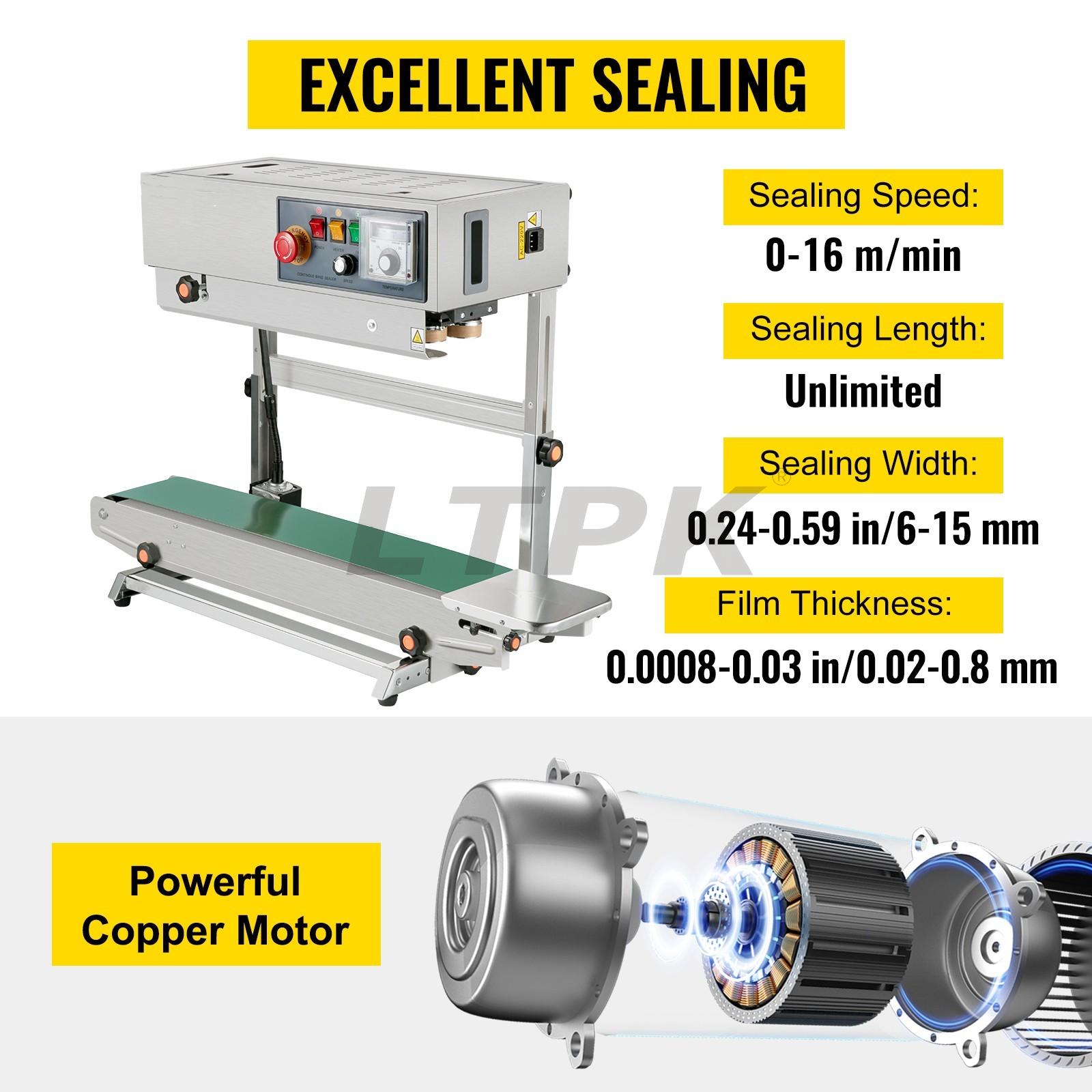

Excellent Sealing
The sealing machine is equipped with a thickened conveyor belt, stable and anti-friction. Comes with a 700W copper motor, providing strong power for excellent sealing. Film Sealing Speed: 0-16 m/min. Sealing Width: 0.24-0.59 in/6-15 mm. Sealing Length: Unlimited.

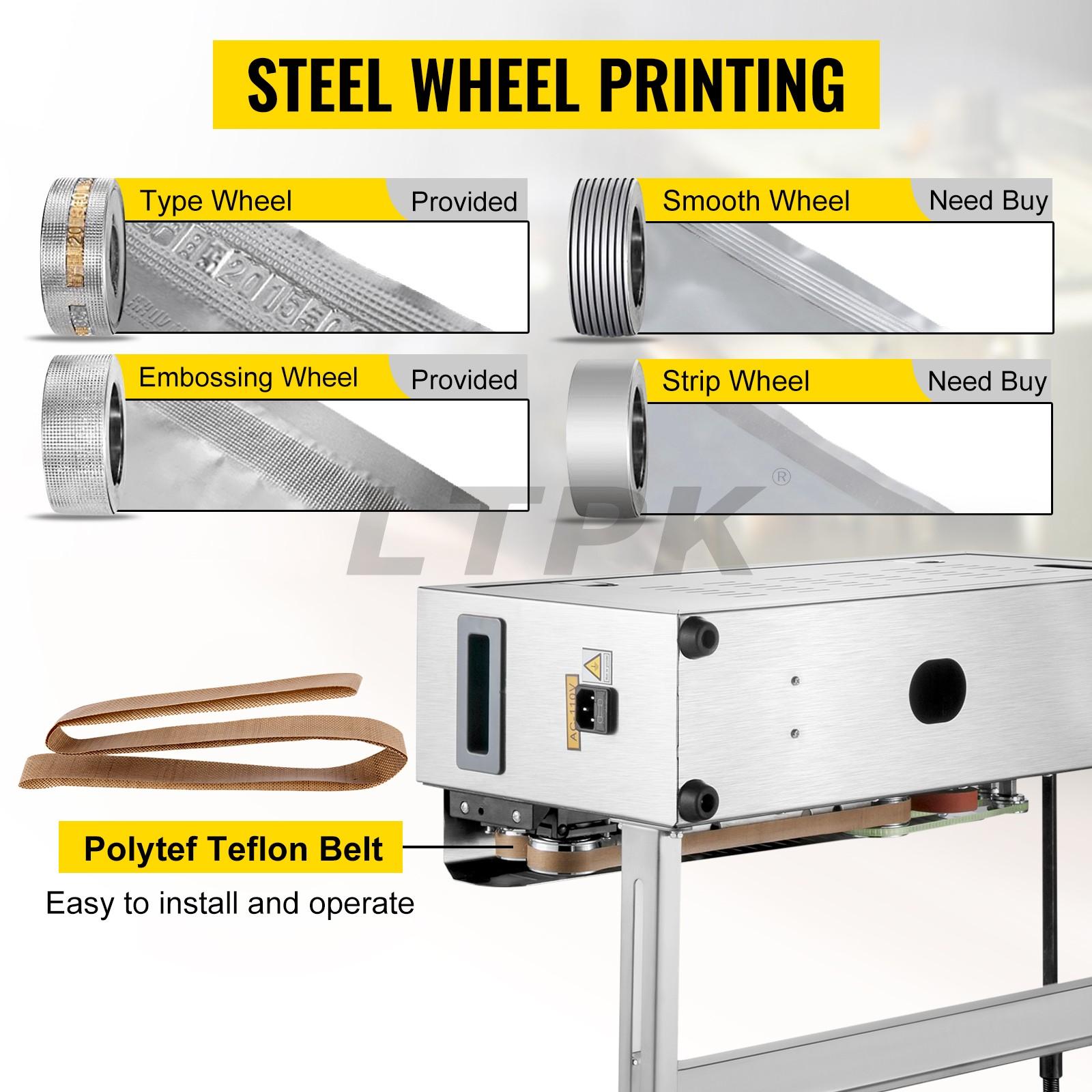

Steel Wheel Printing
The automatic bag sealer is equipped with an embossing wheel and a printing wheel. You can replace the type with what you need and print the production date, time, logo, etc, in the film. Extra polytef teflon belt is included, convenient for operation.

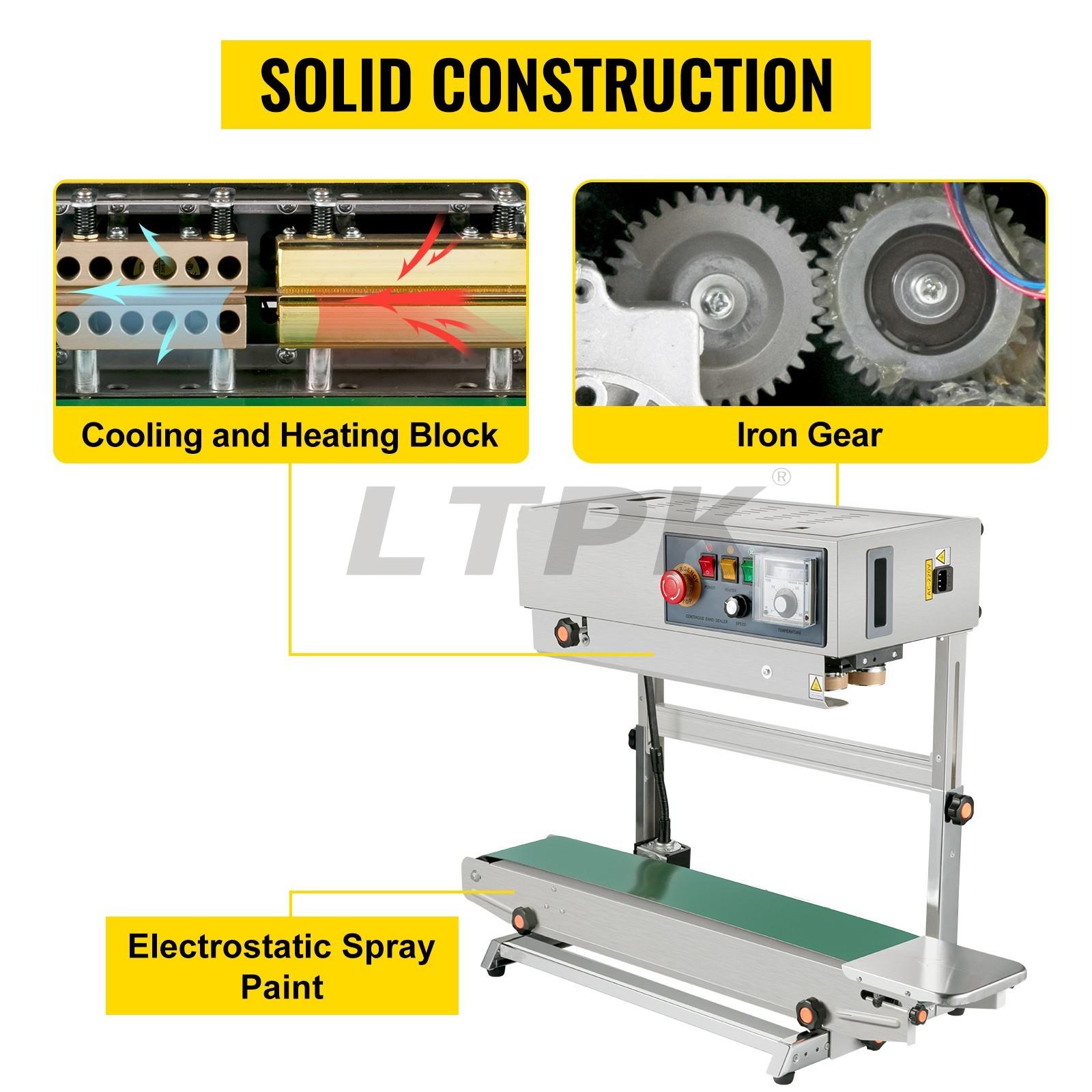

Solid Construction
The heating and cooling blocks are made of high-quality pure copper, and the gears are made of solid iron, durable and long time service. The automatic bag sealer adopts the roller conveyor, combined with a thickened belt and a stainless steel shelf.

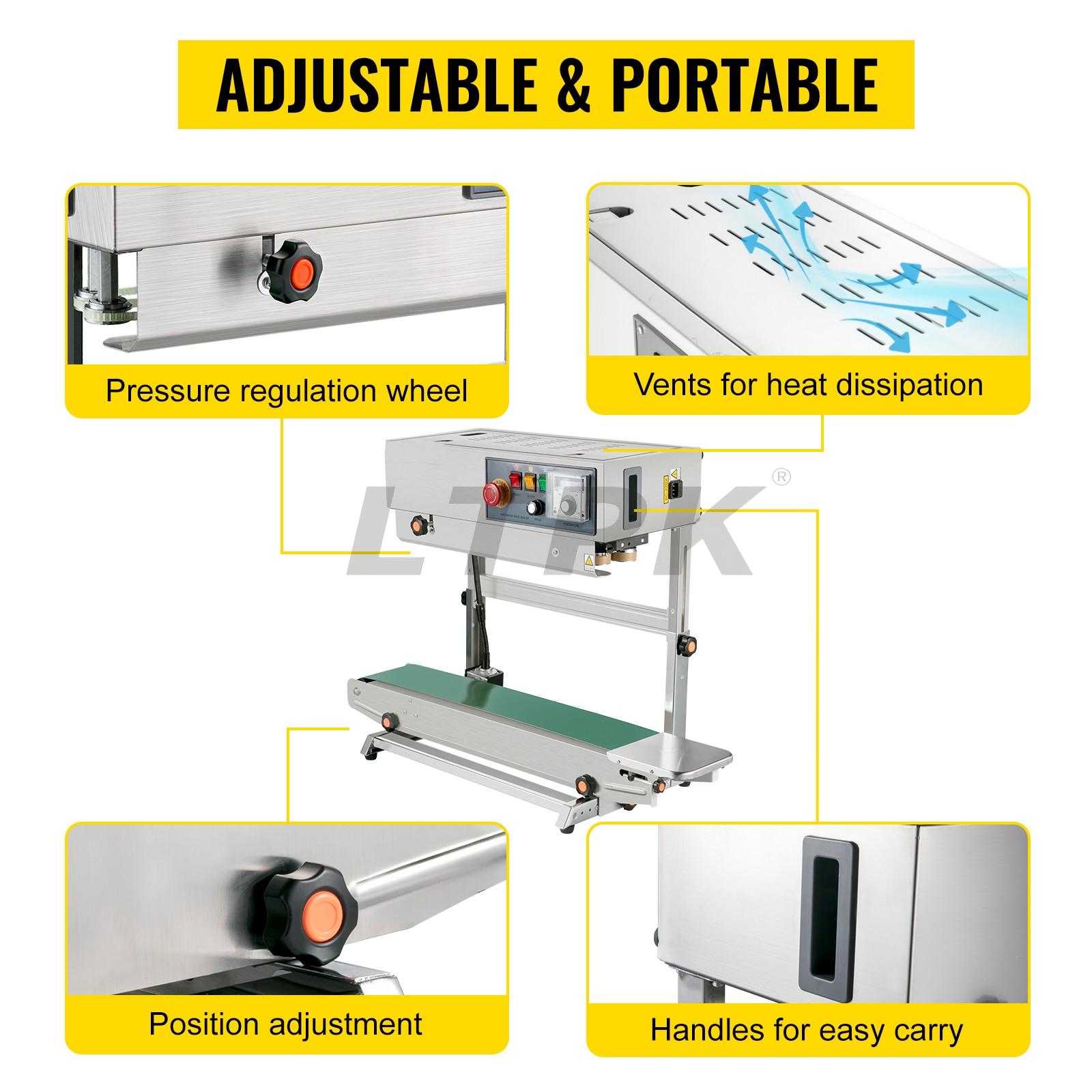

Adjustable & Portable
The pressure control button is used to adjust the printing wheel's pressure to meet the different thickness of the bag. The front and behind of the conveying table also can be adjustable. It is designed with handles for portability and exhaust holes for heat dissipation.

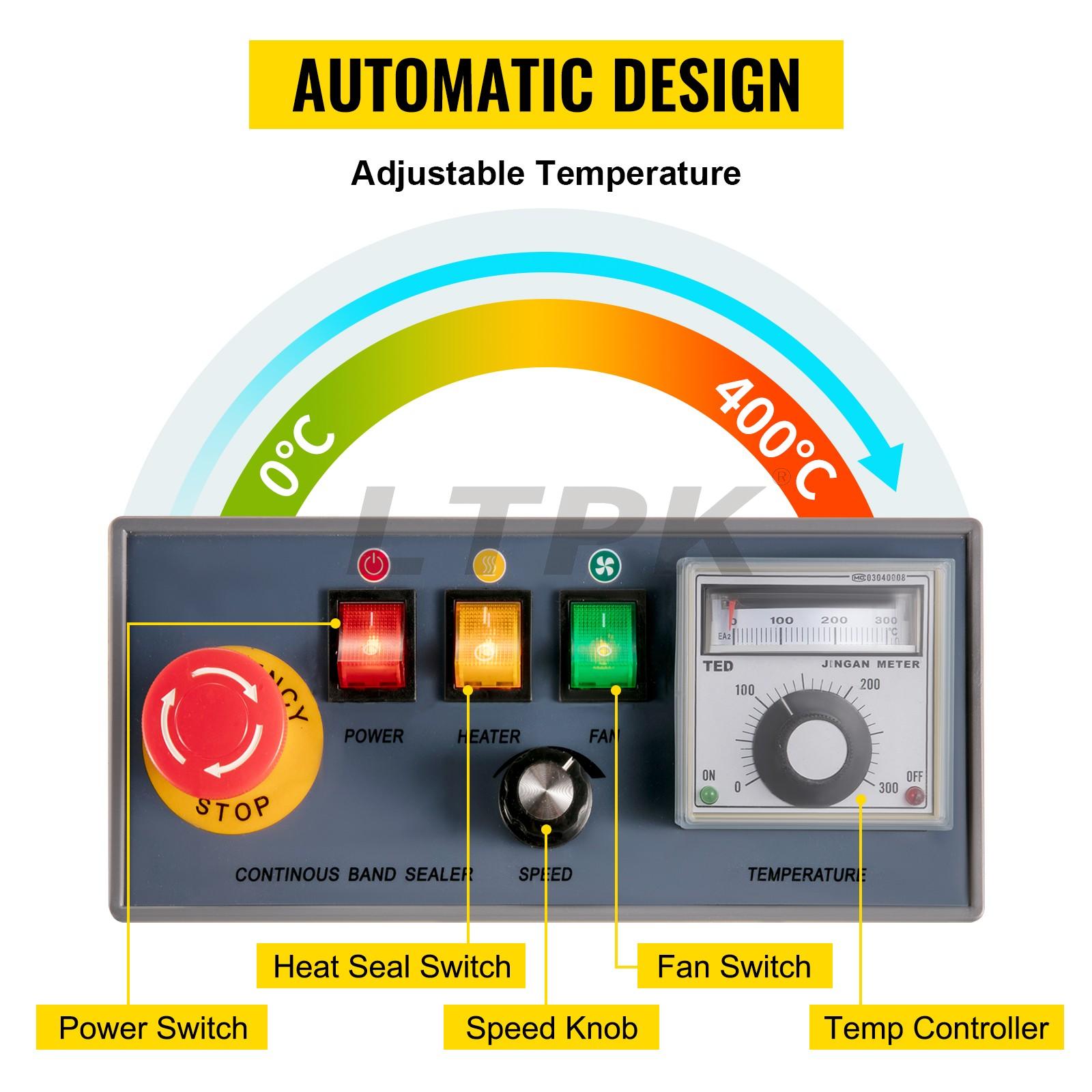

Automatic Design
The machine is possessed of an intelligent digital display with a temperature controller. Besides, the conveyor belt speed can be adjusted according to the actual situation, which helps you seal the bags more conveniently.
Extensive Uses
The design of this automatic sealer makes it perfect for the production line. It is suitable for food, medicine, daily necessities, chemicals, electronic units, seeds packaging. It suits many different film materials, such as PP, PE, PV, OPP, PS.

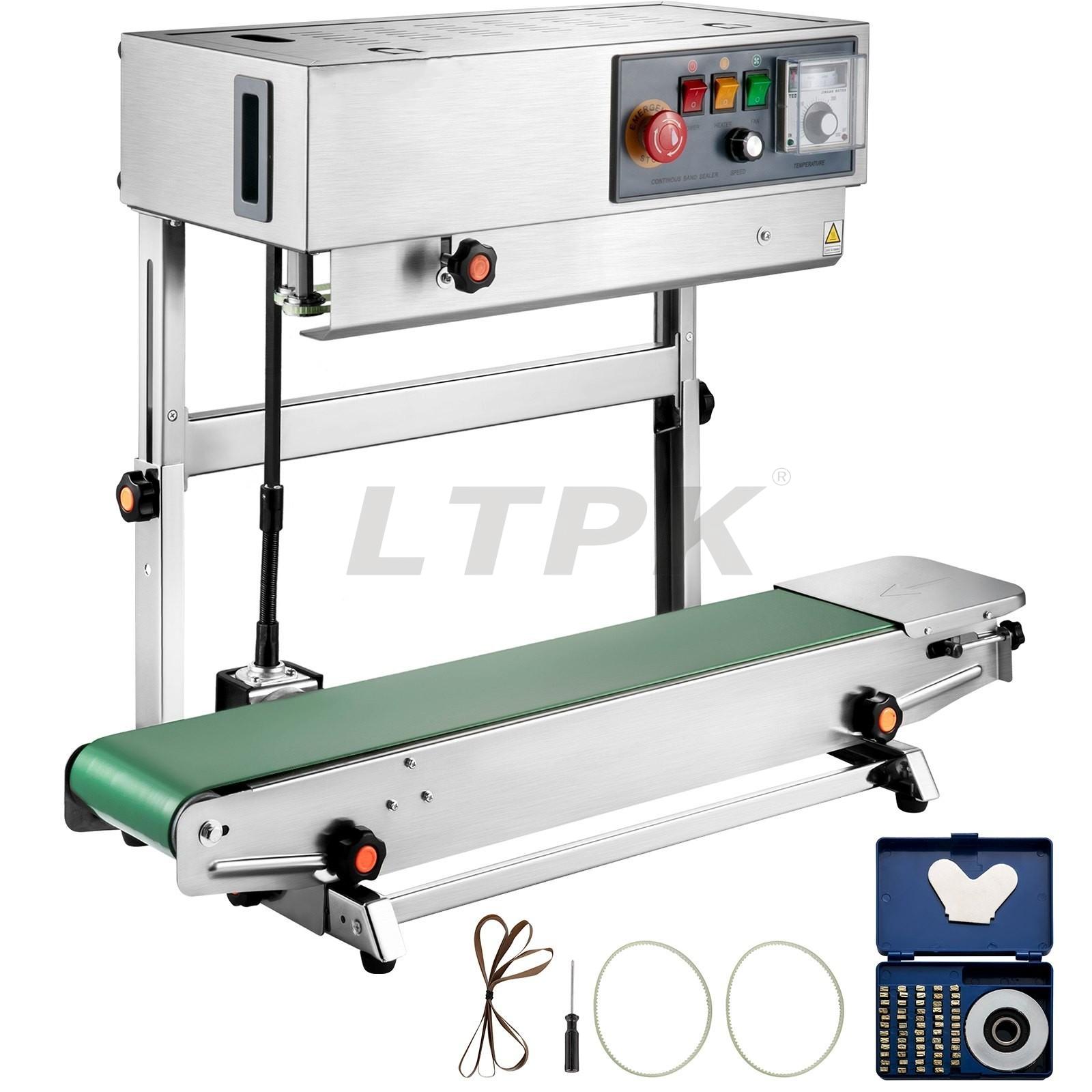

Package Content

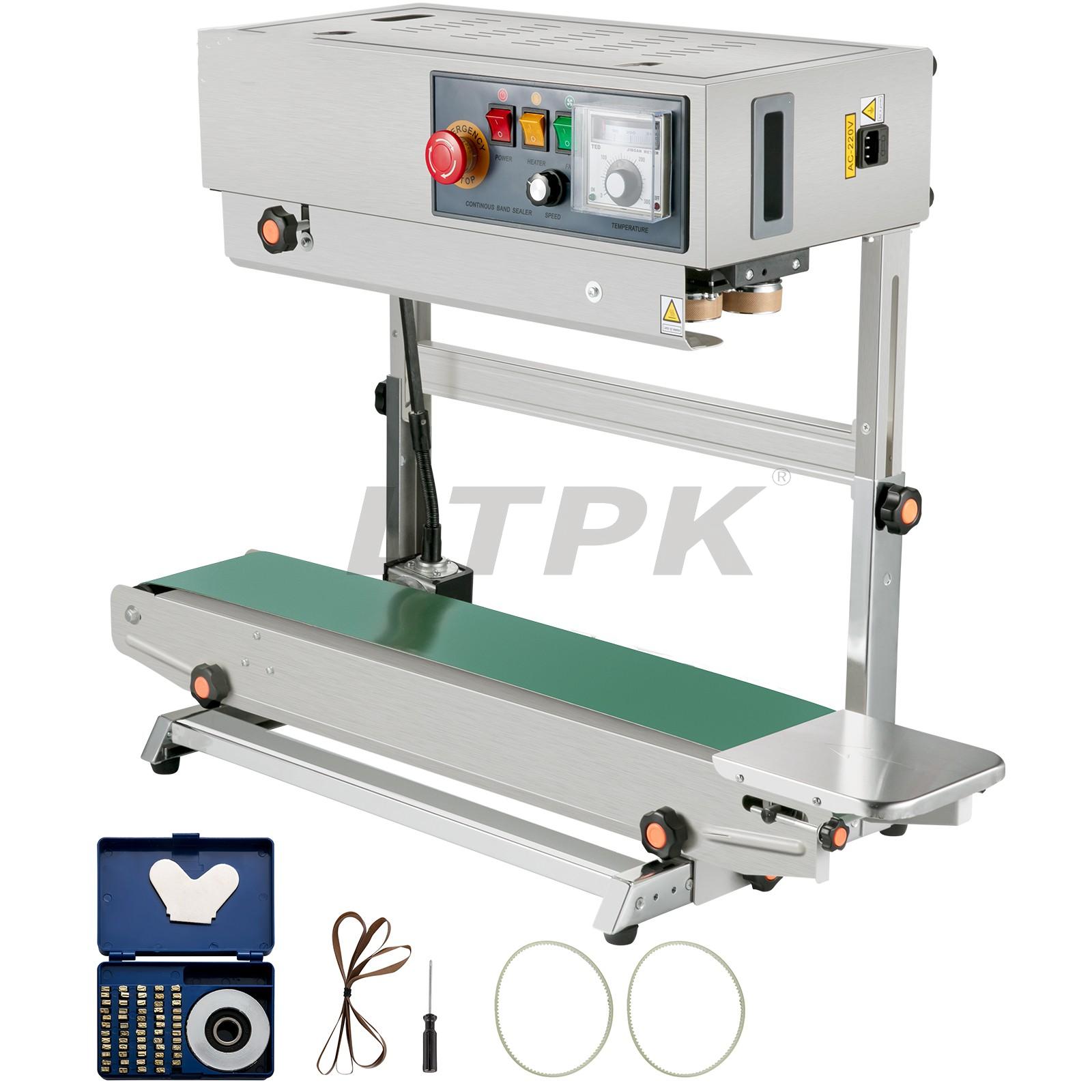

- 1 x FR-770 Sealing Machine
- 1 x Accessories as shown
- 1 x User Manual
