LTPK Fully automatic 4 nozzles paste filling machine and capping machine

LTPK Fully automatic 4 nozzles paste filling machine and capping machine

Product Item： LT-APFC4

Voltage: 220V/110V

Filling Accuracy: ≤±1

Bottle height 50-350mm

Bottle Caps Diameter 20- 50mm

Category：Full automatic production Line

Description

Product Description

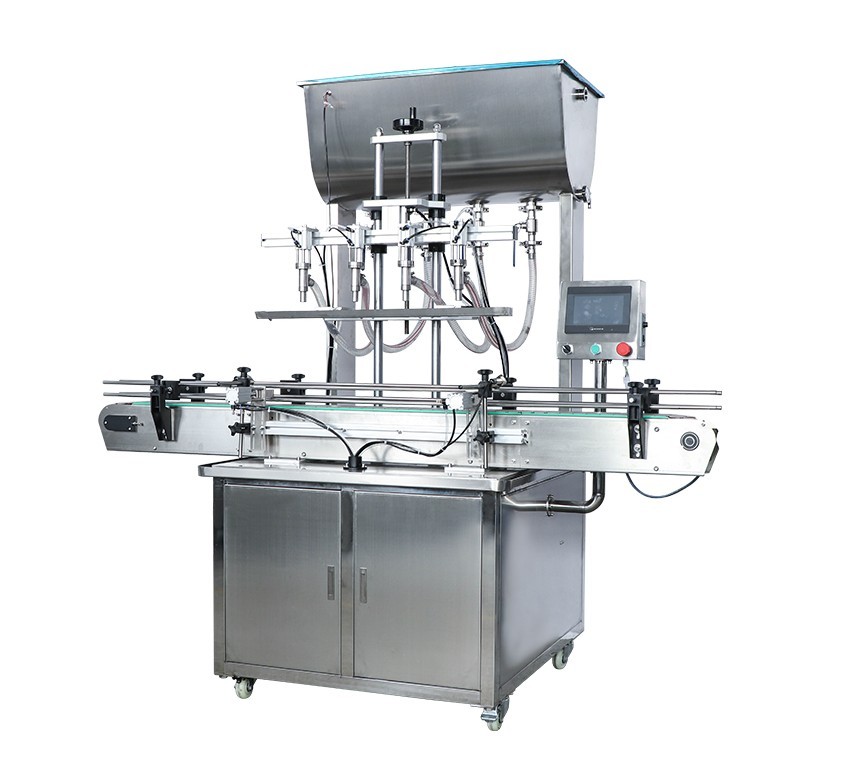

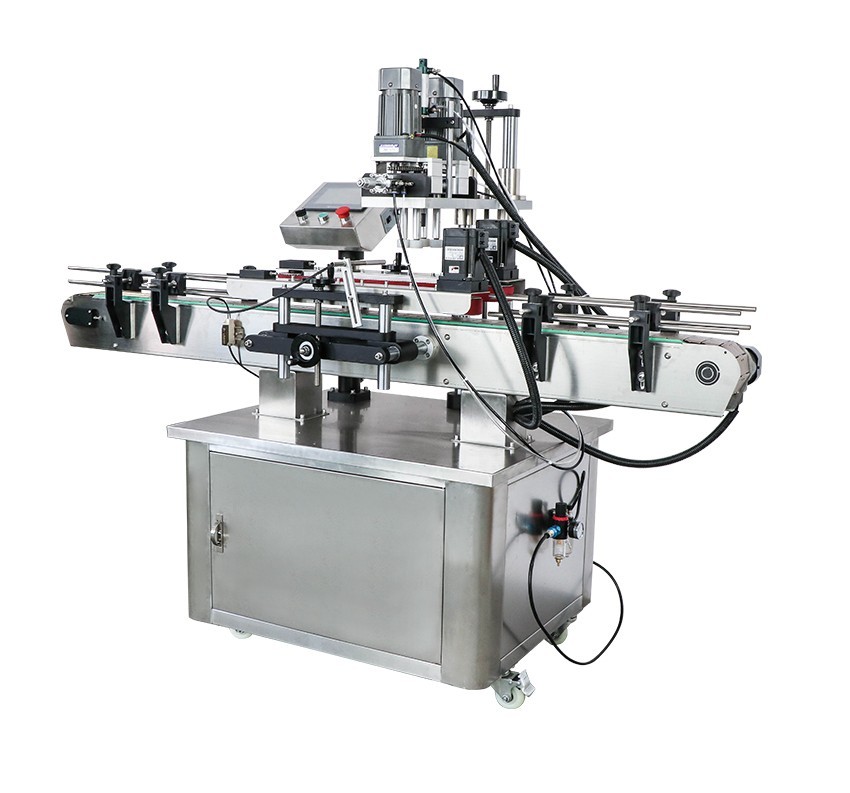

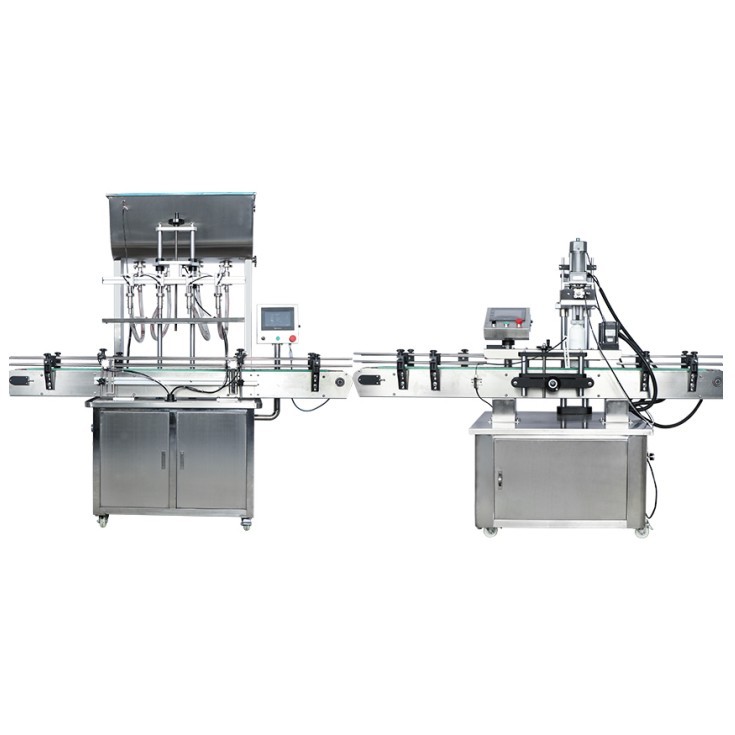

This full automatic 4 nozzles paste filling machine and capping machine production line is designed for filling paste or thicker liquid,like honey, hand sanitizer, laundry detergent, machine oil.It can automatically fill paste,feed bottle caps and cap bottles. Equipped with a labeling machine,it can be a complete production line for production process.Each machine of this production line can work separately.

Technical Parameters

Model	LT-QZDG2	LT-QZDG4	LT-QZDG6	LT-QZDG8
Voltage	110/220V 50-60HZ
Flling Range	5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
Working Speed (base on water)	10-40bottles/min	20-50bottles/min	30-70bottles/min	40-80bottles/min
Filling Accuracy	≤+1%
Air Pressure	0.5-0.7MPa
Machine weight	220kg	260kg	300kg	600kg
Power of whole machine	800W
Dimension	200x120x230cm	200x120x230cm	250x130x230cm	280x130x250cm


Bottle height	50-350mm
Bottle Caps Diameter	20- 50mm
Working speed	0-40 bottles/minute (depending on bottle and caps)
Working voltage	AC220V/110V 50-60HZ 300W
Working pressure	0.4-0.6 MPa
Capping Torsion	4-9kgf/cm
Packing size	About 19004701240mm
