Description

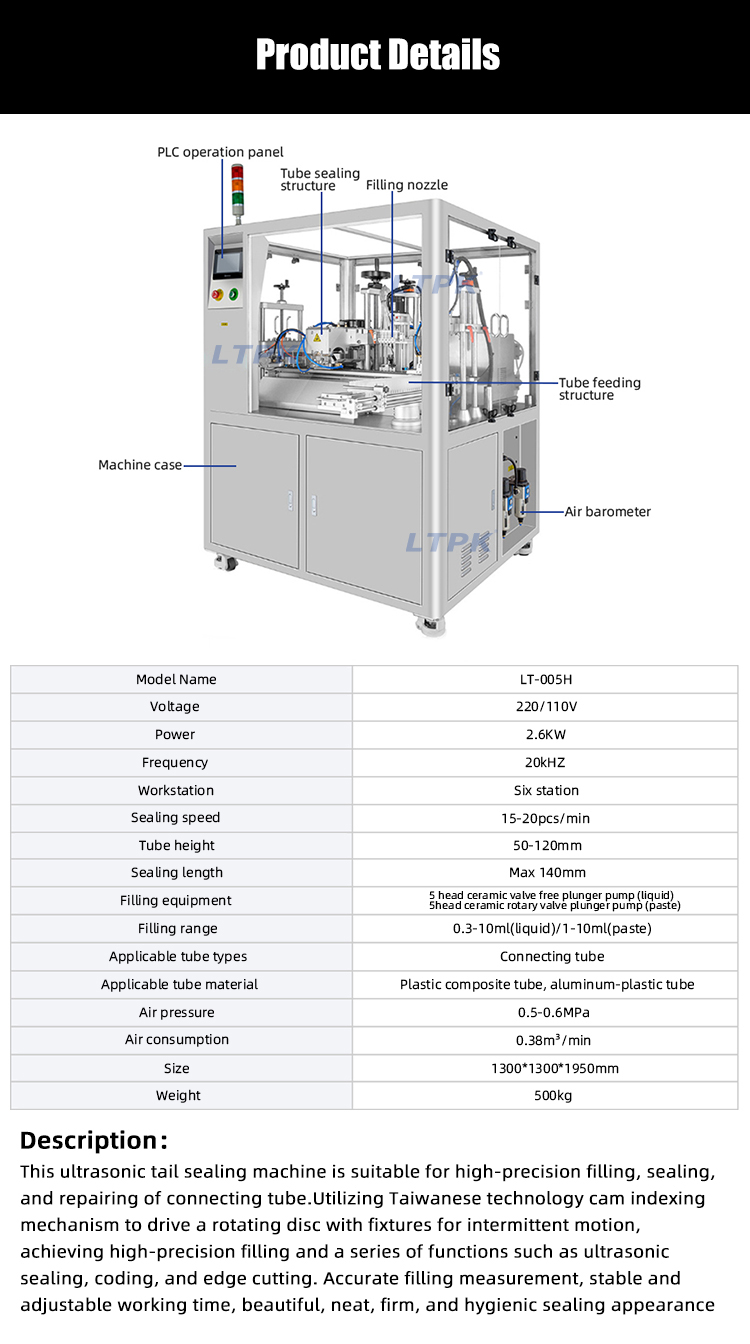

Technical Parameters

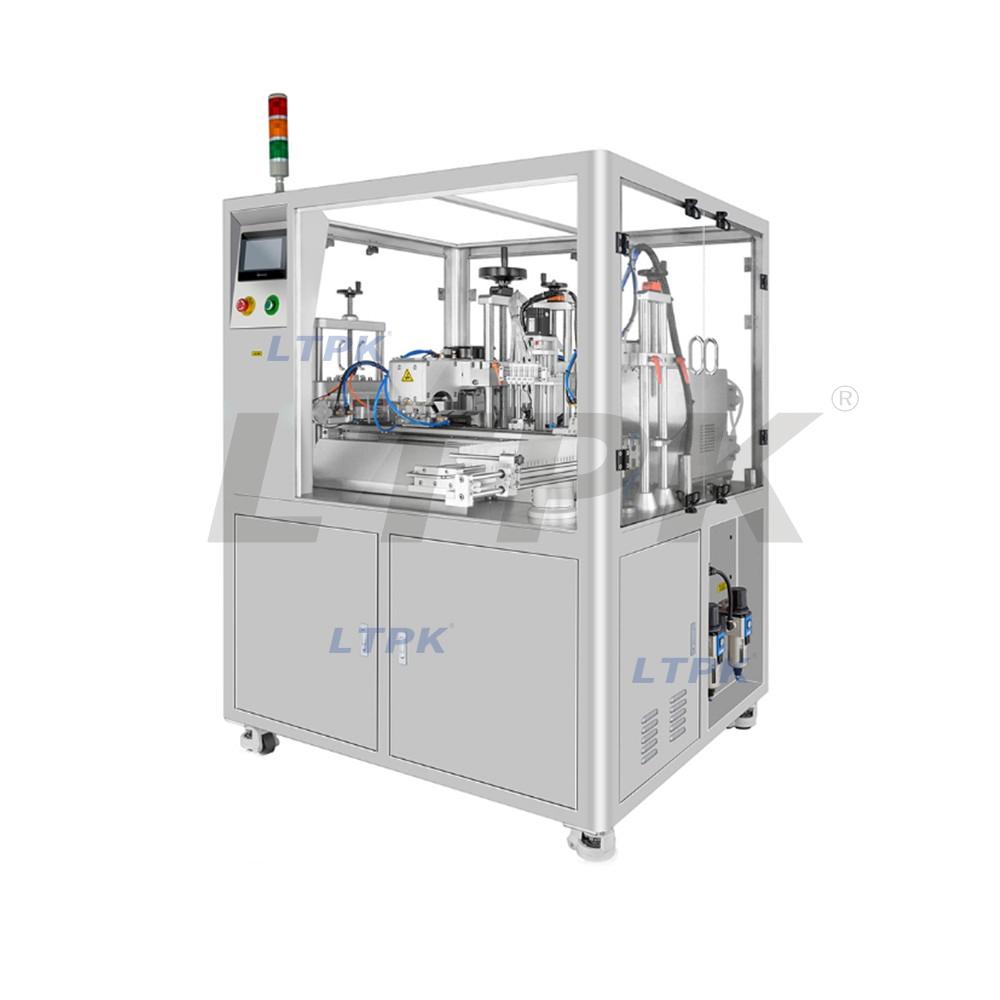

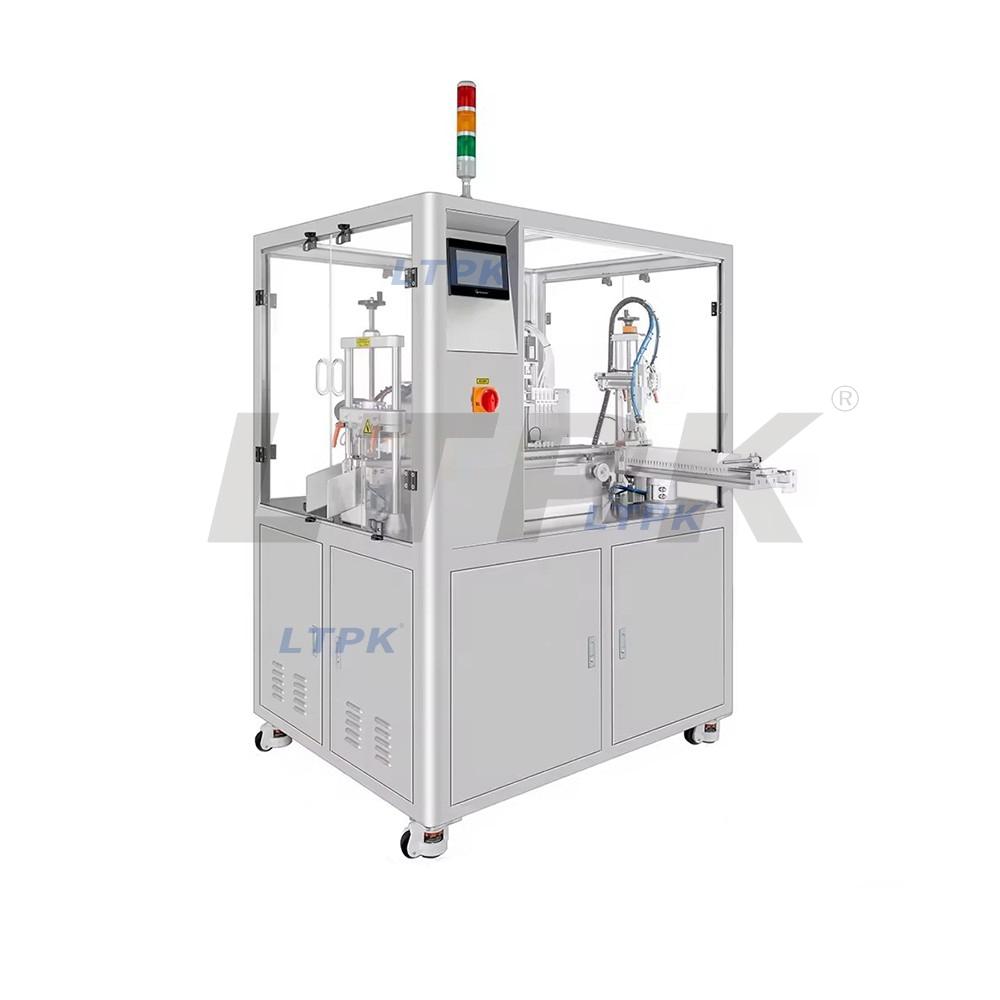

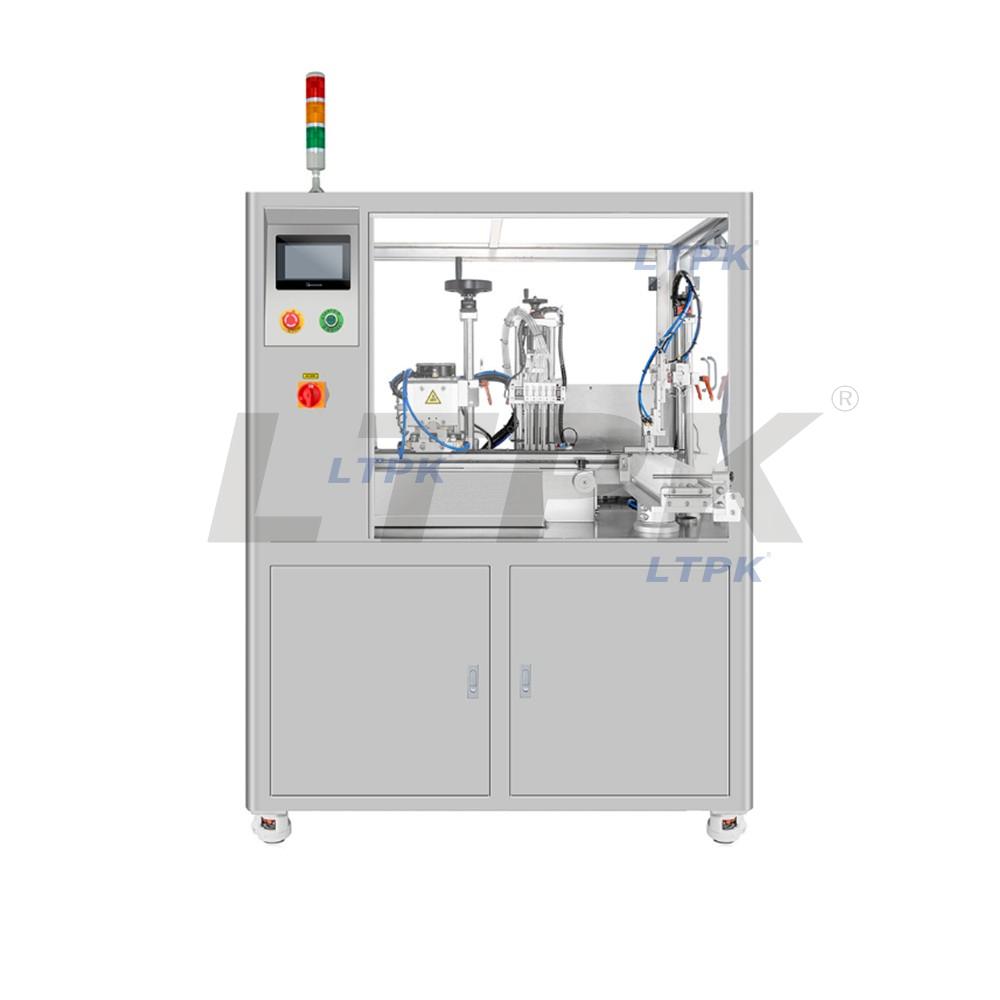

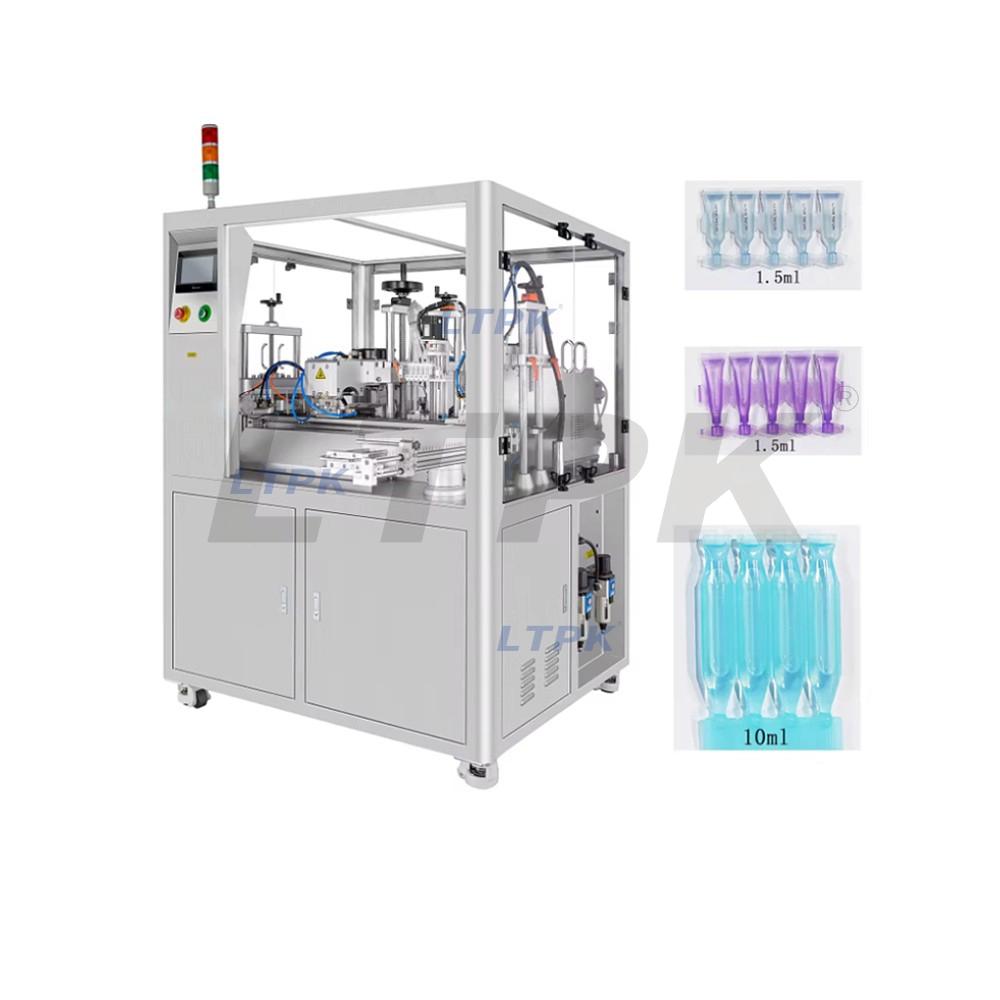

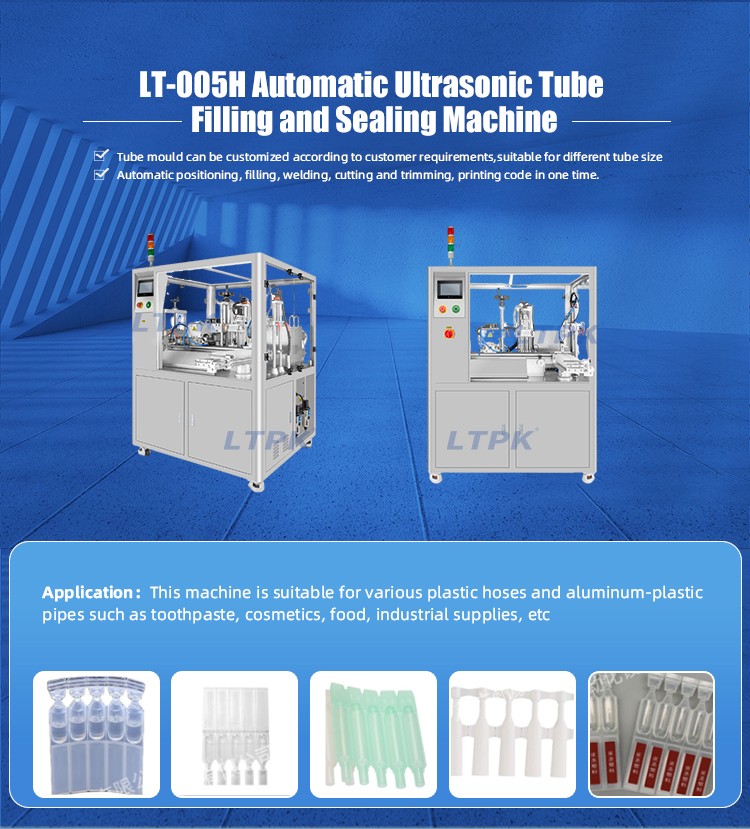

Model LT-005H
Filling range 1-10ml
Output power 2600W
Voltage AC220V/single phase 50/60HZ
Machine weight 360kgs
After packaging 380kgs
Machine size 1300*1300*1640mm
Max Sealing Length 140mm
Control Style PLC control
Time adjust electronic adjust
Packaging Plywooden case packaging

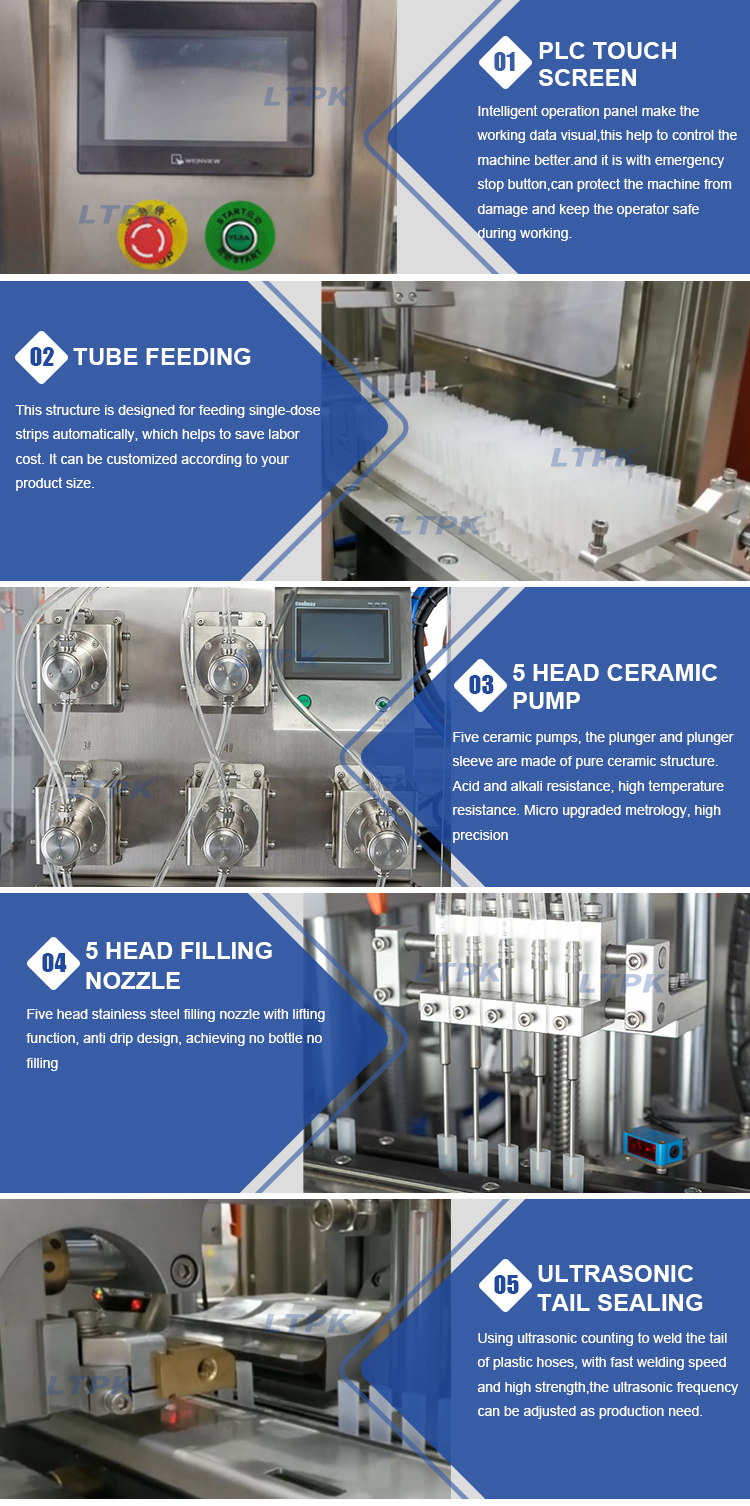

Main Features
1. Easy to operate and maintain.
2. Automatic positioning, filling, welding, cutting and trimming, printing code in one time.
3. Stainless steel machine body, strong and beautiful looks,
4. Sealing mould can be customized according to customer requirements. Can seal many size of tubes.
5. Ultrasonic Sealing Machine power source for the pneumatic, working steady, not easy to damage, customers can rest assured use.
6. Ultrasonic frequency can meet international standard, no harmful to human being or environment
7. Can be work in time, not need wait the heat time .
Advantages
1.It adopts Ultrasonic sealing machine , good for difference products, Such as food, medical, cosmetic products. It will not hurting the products.
2. Overload protection, phase separation protection, power-fail protection.
3. Large Ultrasonic output power to ensure the sealing quality of various tube size and material.
4. With tube end trimming
5. Easy change working mold for difference tube diameter
6. Adjustable tube length
7. Machine include a gear pump filler( Good filling precision+- 1)
