Description
Description

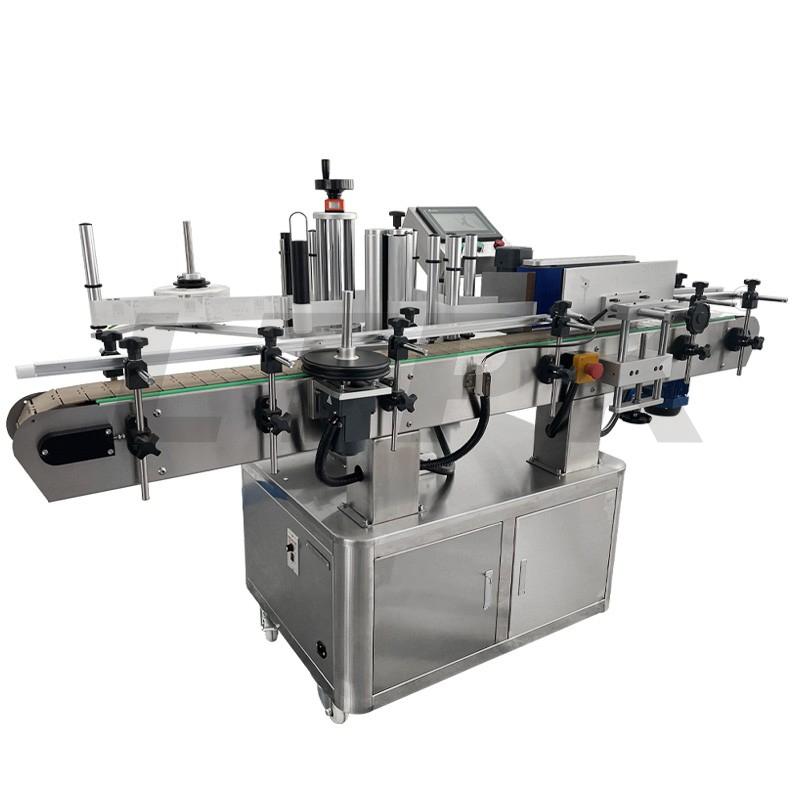

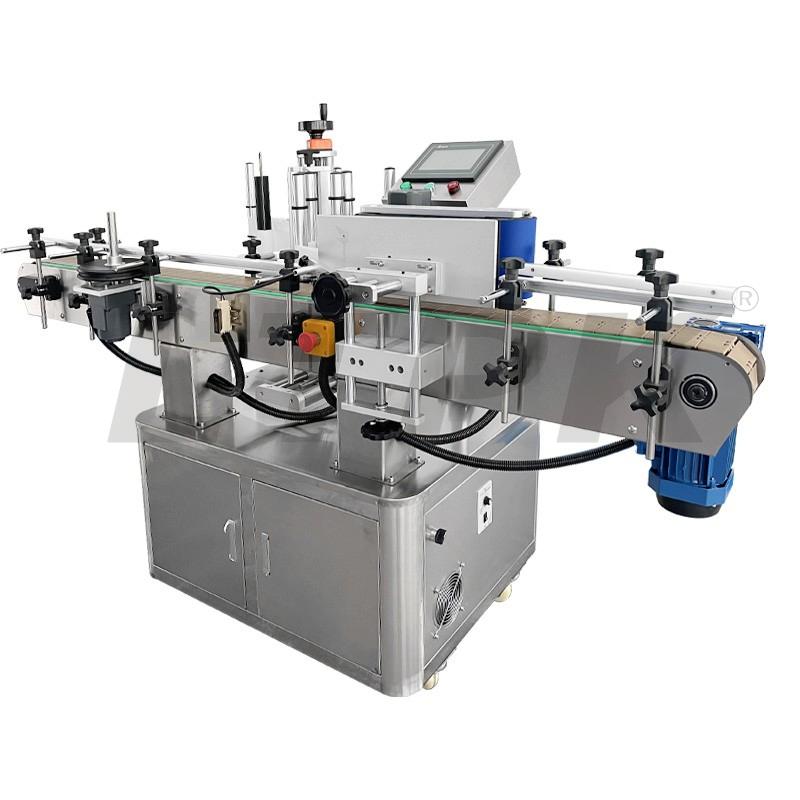

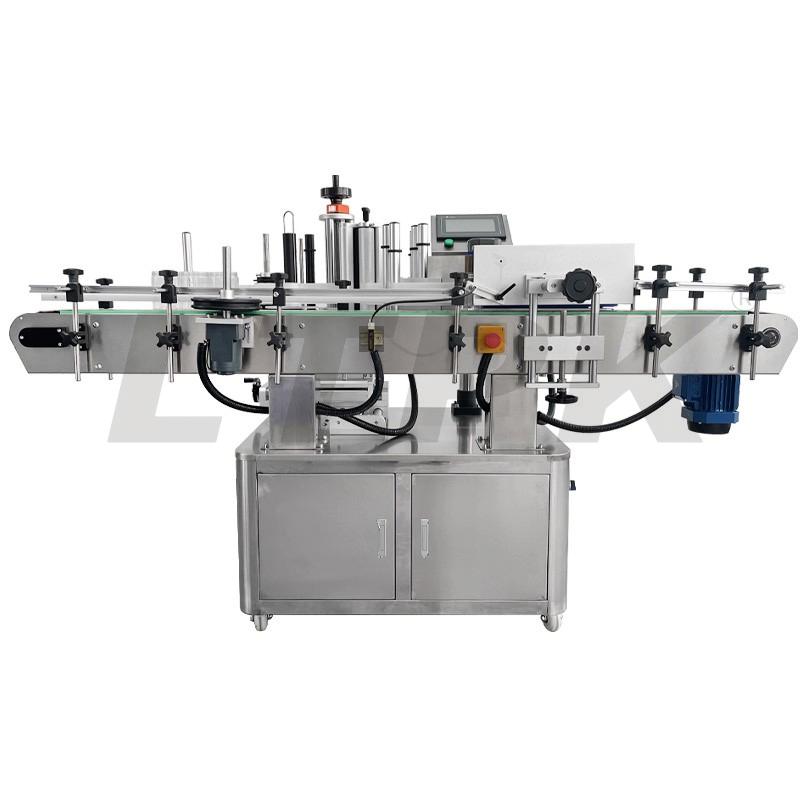

This full automatic round bottle labeling machine is designed for single side label.It can transfer the bottle,separate stickers and label them on bottles precisely.Equipping with date printer to print production date is also available.Auto labeling machine help you improve working efficiency.
Application
This machine is mainly used for label single side sticker on round bottle products.Like juice bottles,water bottles,toner bottles.Auto labeling machine ensure the application and working speed.
Parameter
Model | LT-220 |
Label length | 30~300MM |
Label width | 30~150MM |
Suitable bottle diameter | φ20~120mm |
Outside diameter of standard roll | φ280MM |
Inside diameter of standard roll | φ76MM |
Labeling accuracy | ±1.0MM |
Machine Weight | About 250KG |
Frequency | 50HZ |
Voltage | 220V |
Power | 1100W |
Conveying speed | 16m/min |
Marking speed | 5~19m/min |
Labeling speed | 30~160 PCS/min |
Dimensions | About 2000*900*1500mm |
