Description
１、The machine is suitable for the food, medicine, chemical industry, cosmetics industry of powder of measurement packing.

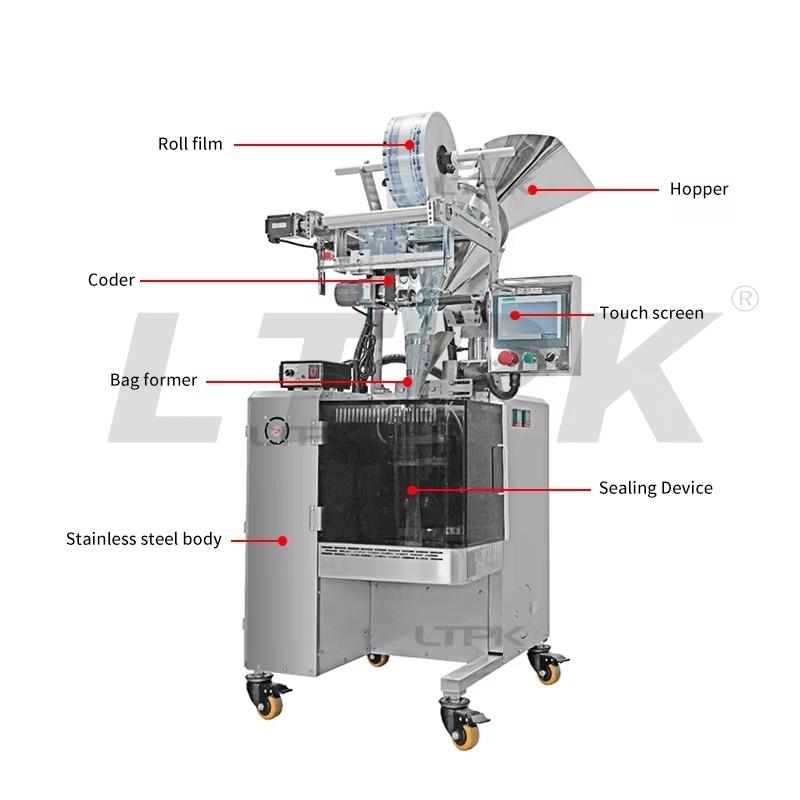

２、All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,
it can also according to the demand of customers printing batch number and other functions.
３、The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.
Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
４、Packing material：BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene,
Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on.
Sealing Type:Three sides Sealing/ Four sides Sealing/ Back sealing

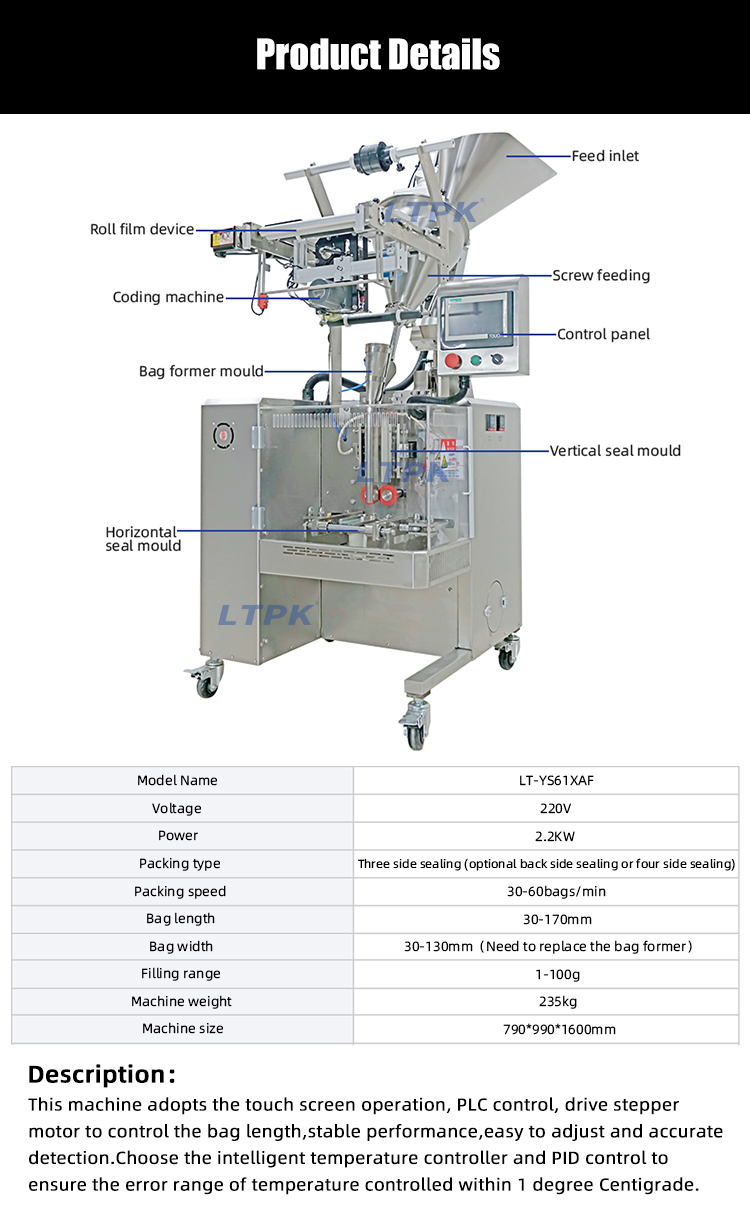

Technical Parameters
Measuring Scope：1 - 100 g
Bag Size：( L ) : 30 - 170 mm
( W ) : 30 - 130 mm
Packing Speed：30 - 70 bags/min
Dimension ( L * W * H )：790 * 990* 1600 mm
Weight：230 kg
Total Power：220V / 50-60Hz / 2.5kw
