Description
Characteristic
1、The machine is suitable for food products of particles, powder, liquid, paste and others measurement packing.

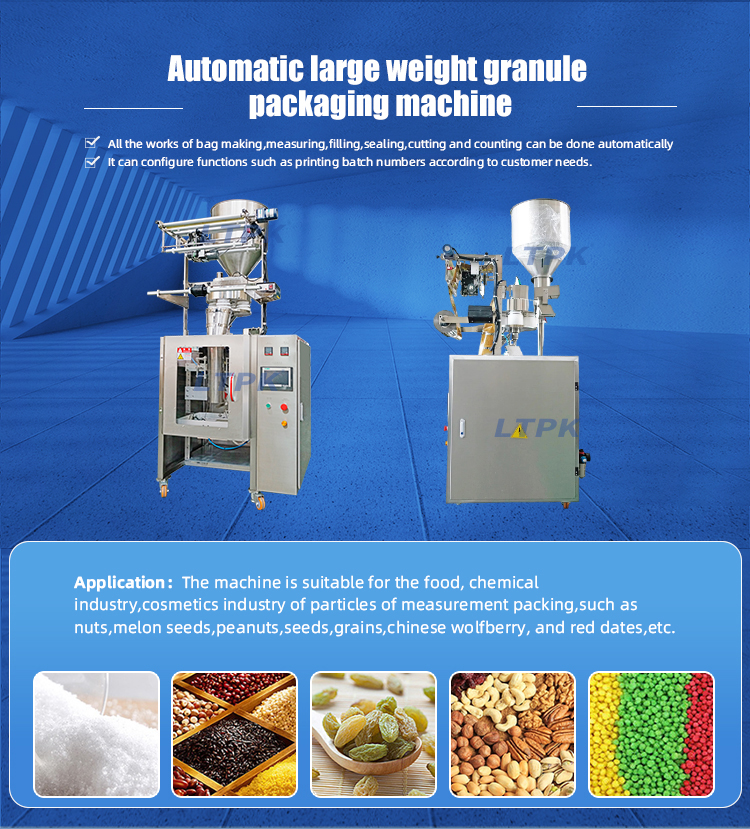

2、All the works of bag making,measuring, filling,sealing, cutting and counting can be done automatically,at the same time,
it can also according to the demand of customers printing batch number and other functions.

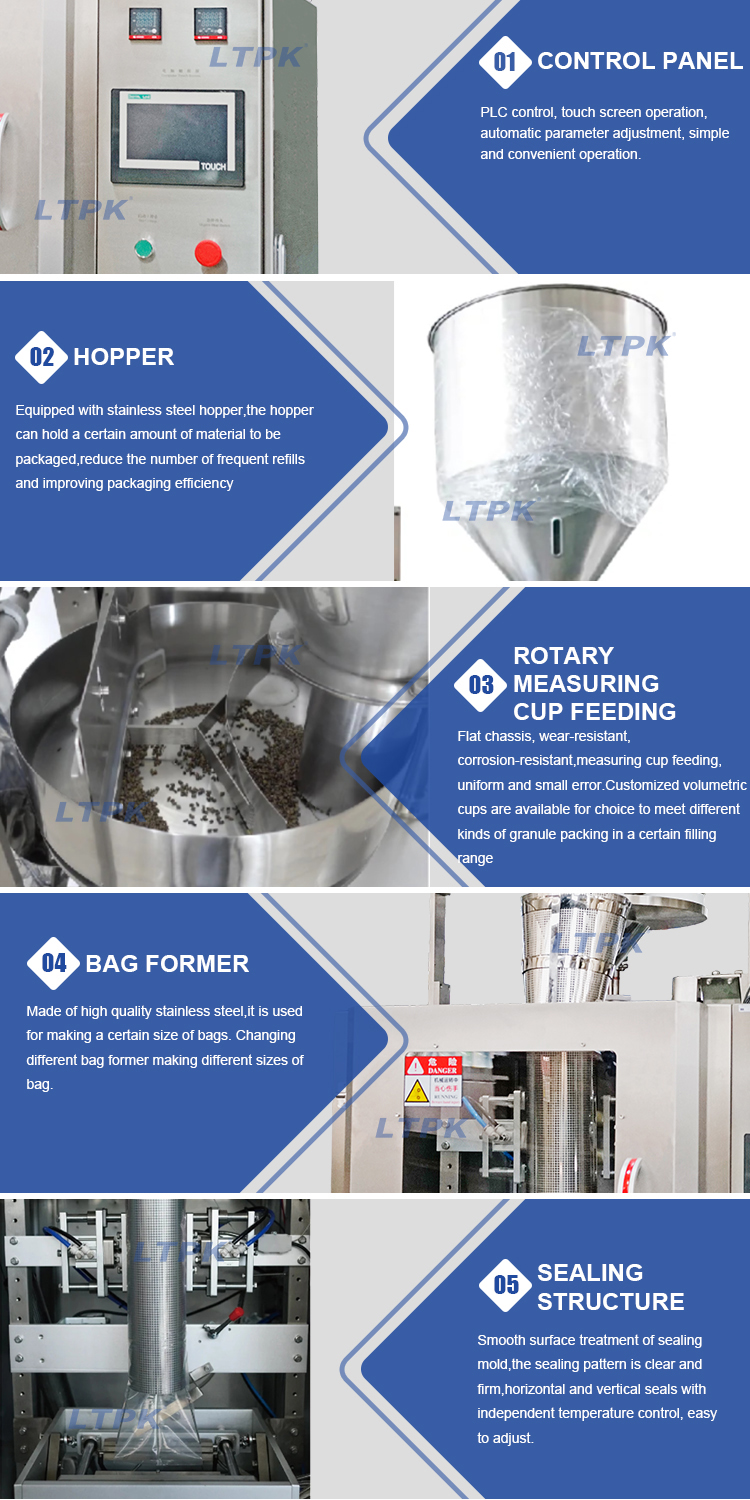

3、The touch screen operation, PLC contro,servo motor to control the bag length,stable performance,easy to adjust
and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4、Packing material：BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene,
Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on.

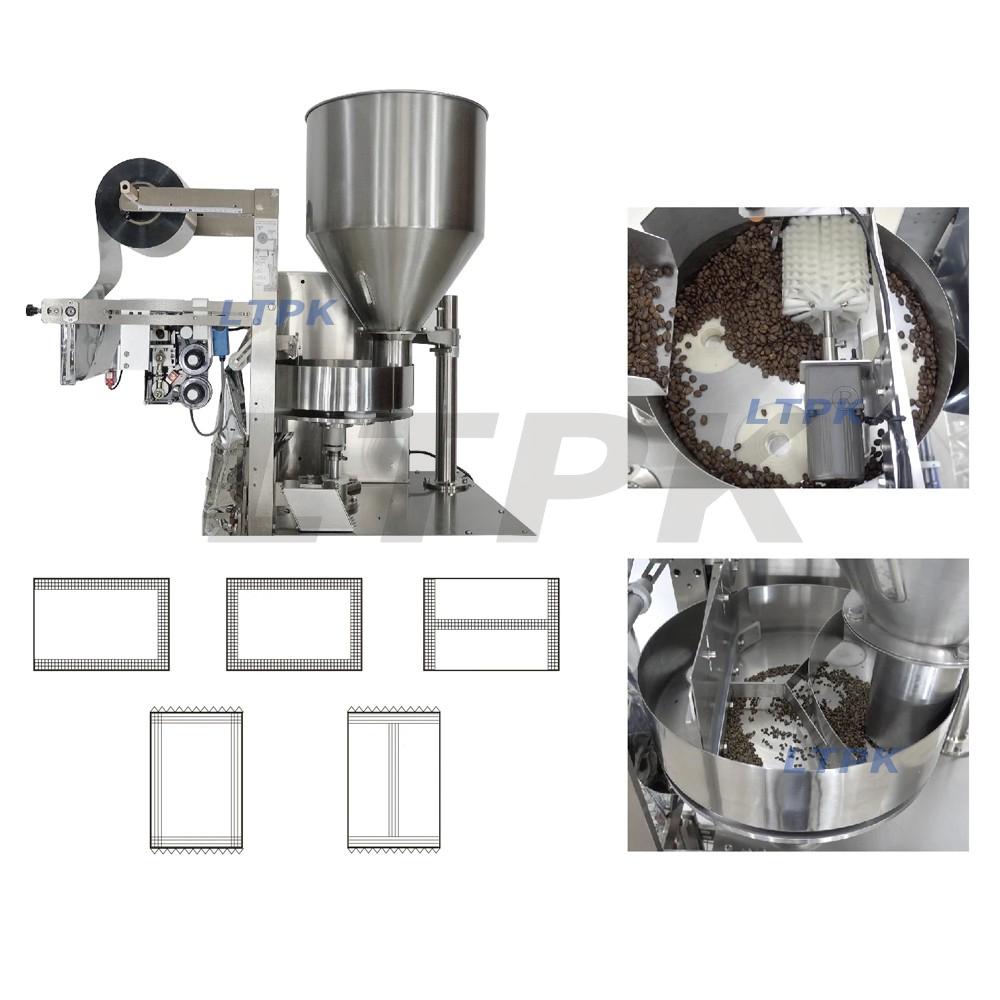

Sealing Type
Three sides sealing /Back sealing

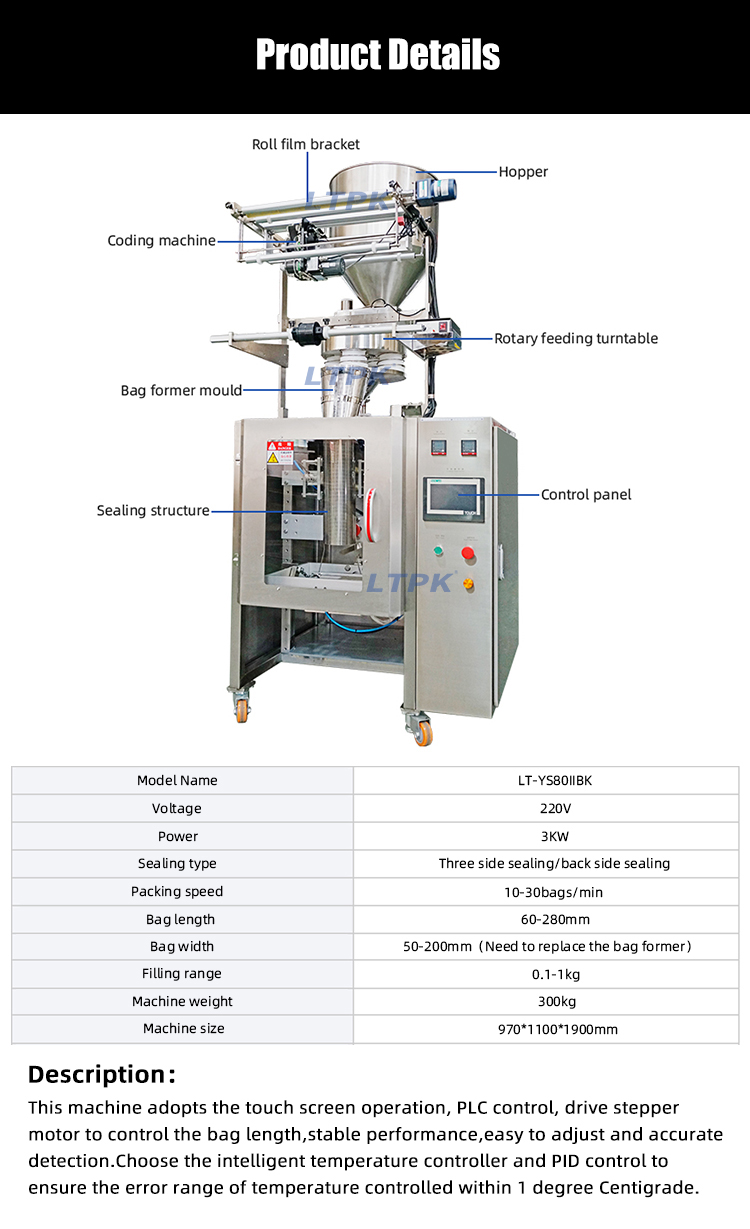

Technical Parameters
Measuring Scope ：0.1 - 1kg
Bag size：（L）：60 - 280mm
（W）：50 - 200mm
Packing Speed：10 - 70bags/min
Dimension ( L * W * H ): 850*1100*1900mm
Weight：300kg
Total power：AC220V / 50HZ / 3KW
