Description
Description

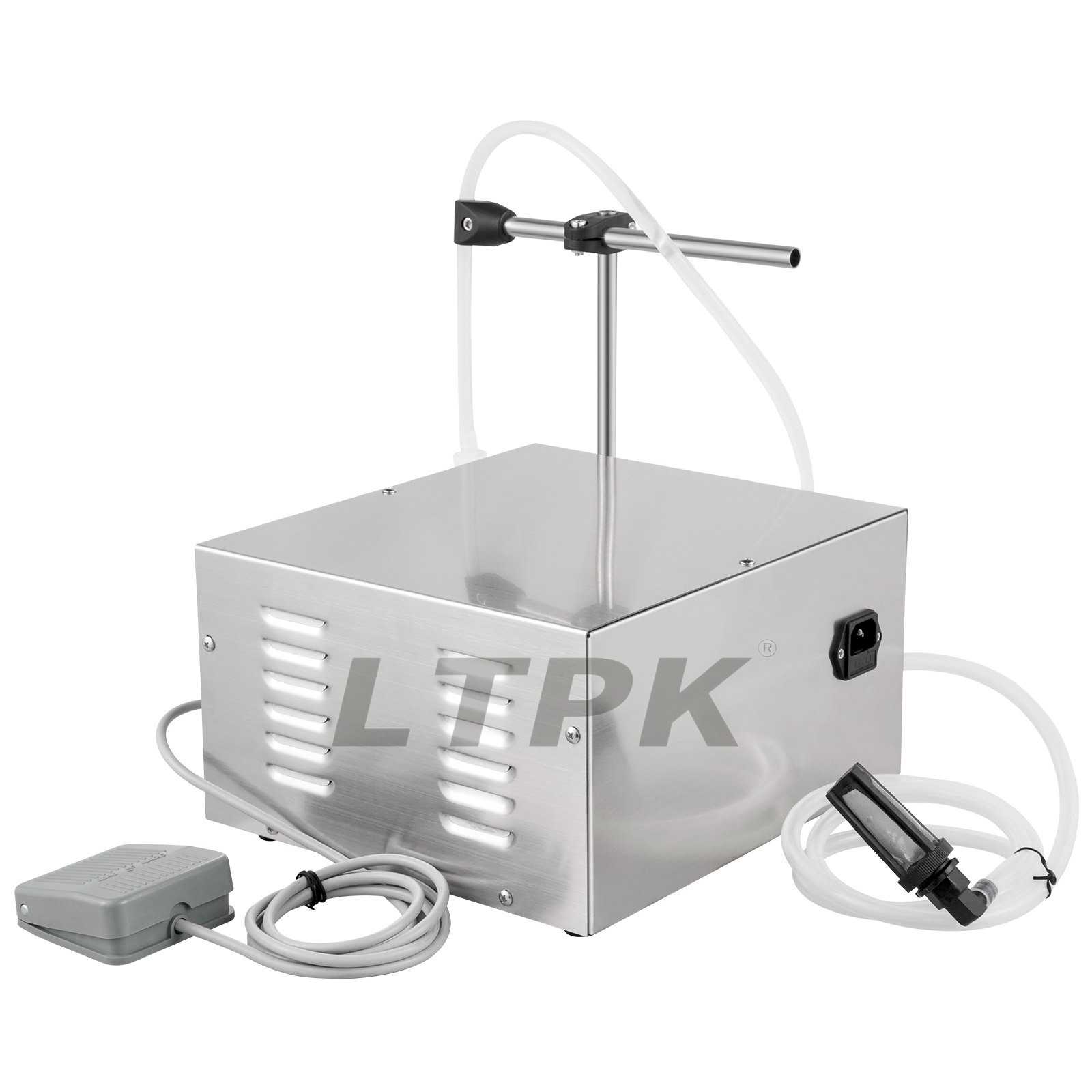

Precise Liquid Filling: The digital liquid filling machine is controlled by a micro-computer with high efficiency, low power consumption, and automatic counting function. The LCD screen is for you to accurately control and monitor. Filling volume: 0.18-123.2 oz/5-3500 ml; Repetitive error: <0.5%.
Auto & Manual Control: Two control modes help you efficiently operate the bottle filling machine. Pedal once and discharge once in manual mode while filling continuously in auto mode. The advanced pump has a maximum flow rate of 0.8 gal/min( 3.2 L/min).
Stainless Steel Structure: Pneumatic filling machine is made of 304 stainless steel food-grade materials, which can endure corrosion, rust, acid, and alkali. The anti-drip nozzle and filter are designed to avoid leakage and save more liquid during operation.
Security Design: The liquid filling machine is equipped with a power switch and a power socket for power management in security. Besides, the air vents are also included to radiate quickly and help the filler work long.
Wide Application: This automatic liquid filling machine is widely used in pharmaceutical, cosmetic, food, pesticides, and particular industries. It is suitable for low-viscosity fluid and liquid filling, such as water, olive oil, fuel, drinks, vinegar, milk, etc.
Technical Parameters
Specifications

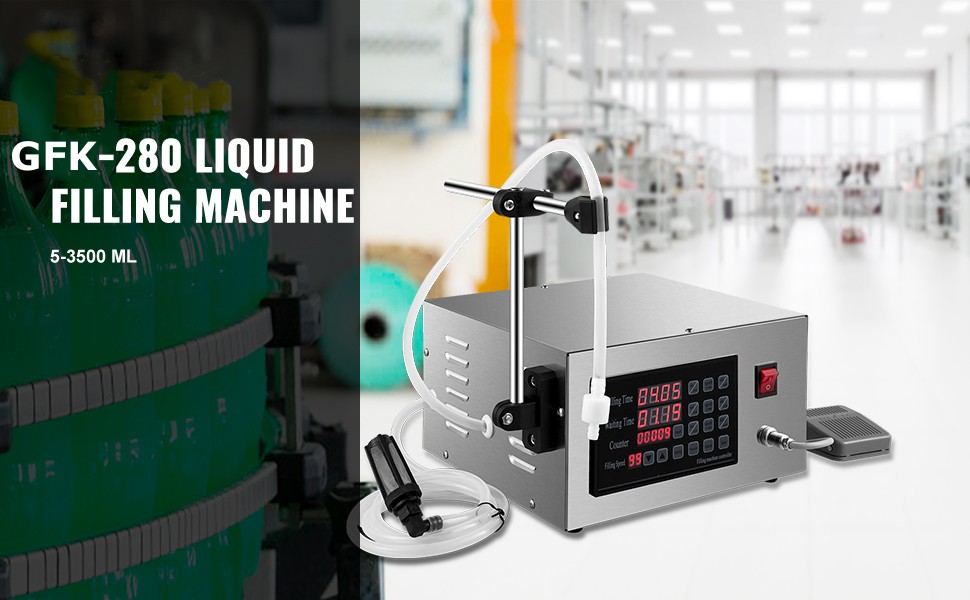

Model: GFK-280
Material: Stainless Steel
Voltage: 110V / 60 Hz
Power: 50W
Filling Volume: 0.18-123.2 oz / 5-3500 ml
Repetitive Error: < 0.5%
Max. Flow Rate: 0.8 gal/min / 3.2 L/min
Max. Suck Distance: 6.6 ft / 2 m
Driven Type: Electric
Product Size(L x W x H): 11.4 x 10.2 x 5.9 in / 29 x 25.9 x 15 cm
Net Weight: 10.6 lbs / 4.8 kg
*Noted: The above parameters for reference only.
The machine constantly upgrades parameters may cause the actual discrepancies, please understand.
Product Details

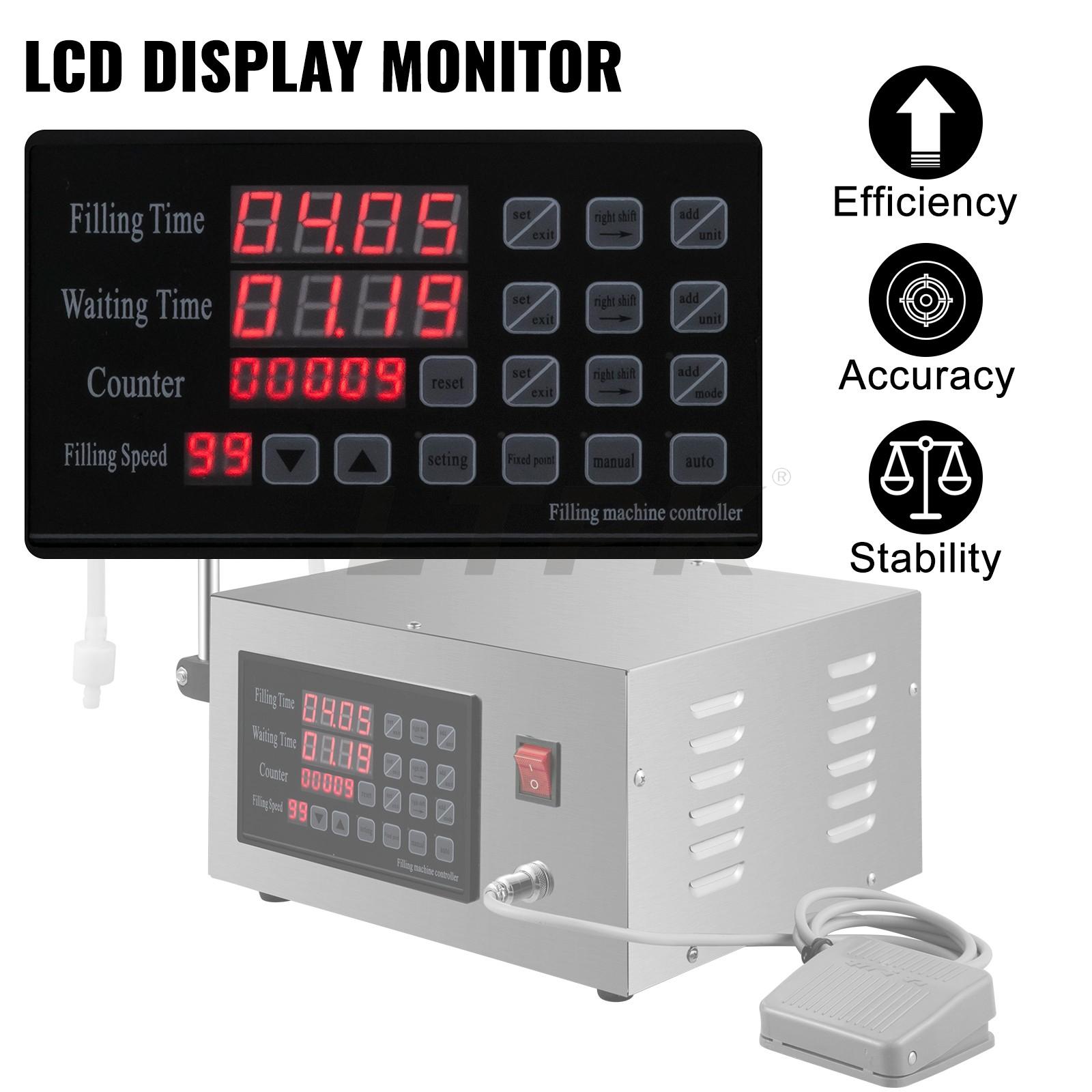

LCD Display Monitor
Our bottle filling machine is controlled by a single-chip microcomputer, ensuring the high precision of filling. Repetitive error:<0.5%. Filling volume and speed can be arbitrarily regulated through the LED screen display. The filling volume is 0.18-123.2 oz/5-3500 ml.
Stainless Steel Shell
All parts in contact with the product are 0.5 in/1.2 mm stainless steel. Extremely easy to operate, clean, and maintain. It's able to keep out corrosion, acid, and alkali. In addition, air vents on both sides are designed to fast heat dissipation.

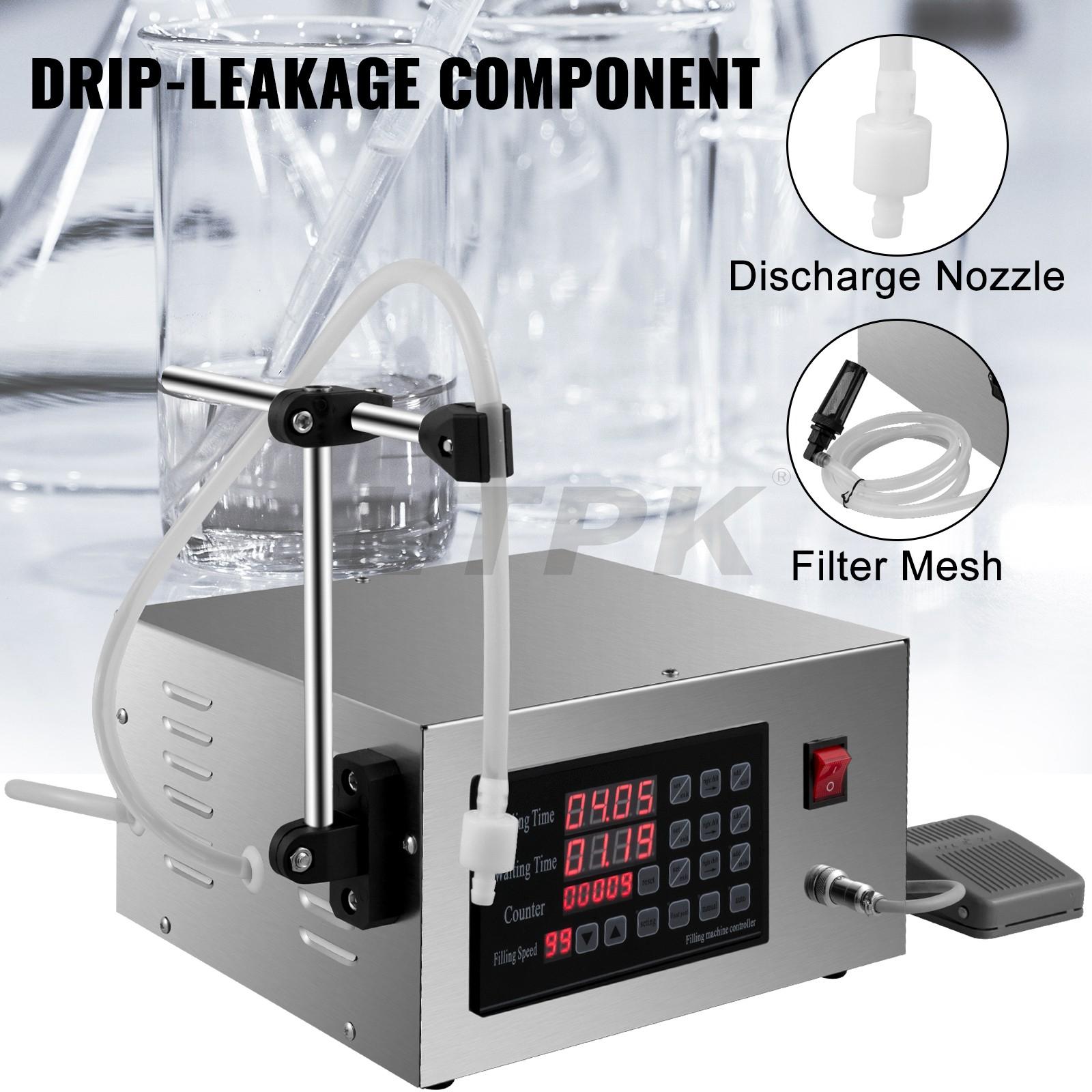

Anti-Dripping Design
The discharge nozzle adopts an anti-dripping design, which gives you high filling accuracy. There is a filter mesh at the water inlet to filter the impurity in the liquid, making sure the purity of liquid.

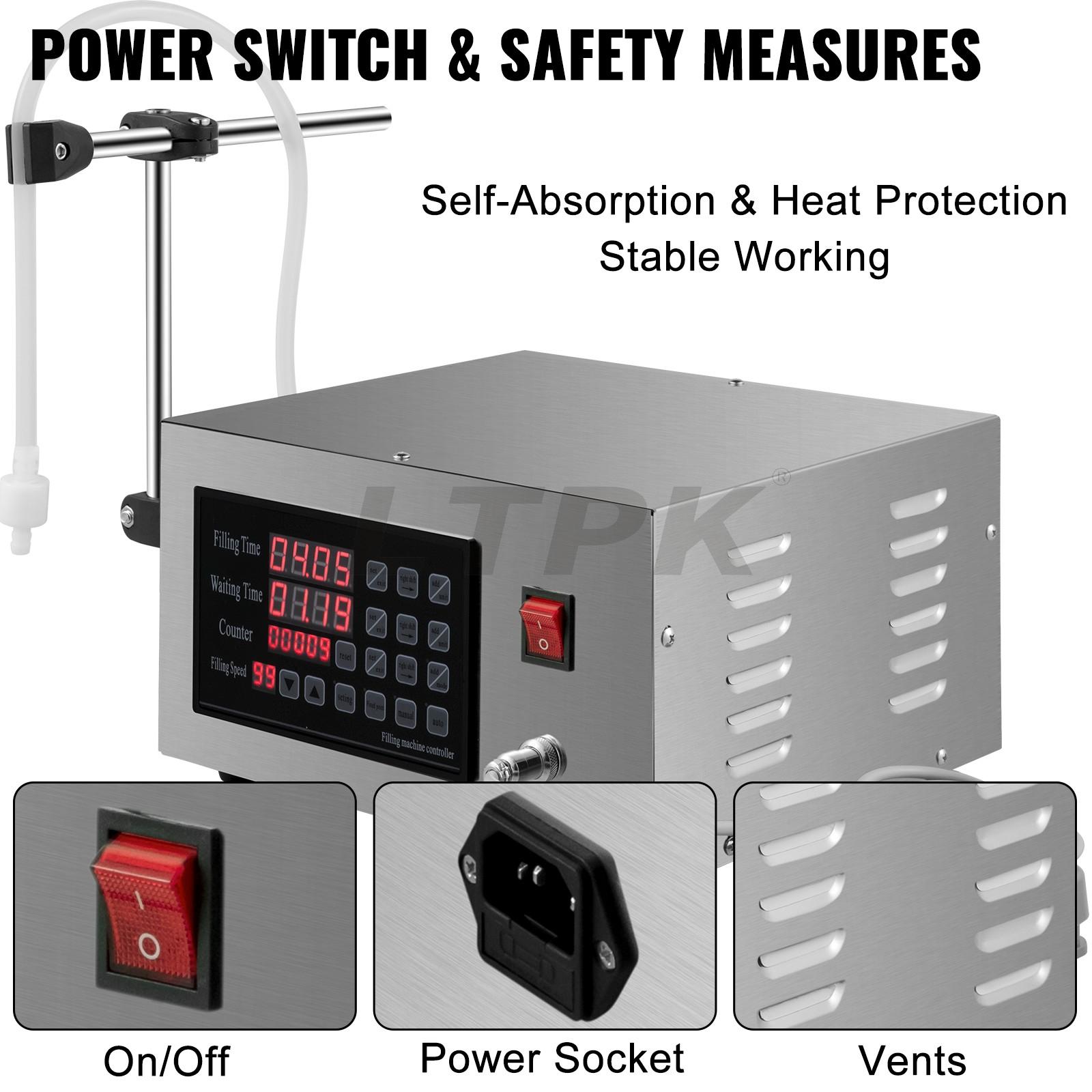

Power Switch
A built-in secure power-off is reasonable to guard the machine. It features self-absorption, heat protection, stable working, and still works well whether it continuously idles or runs with load for a long time.

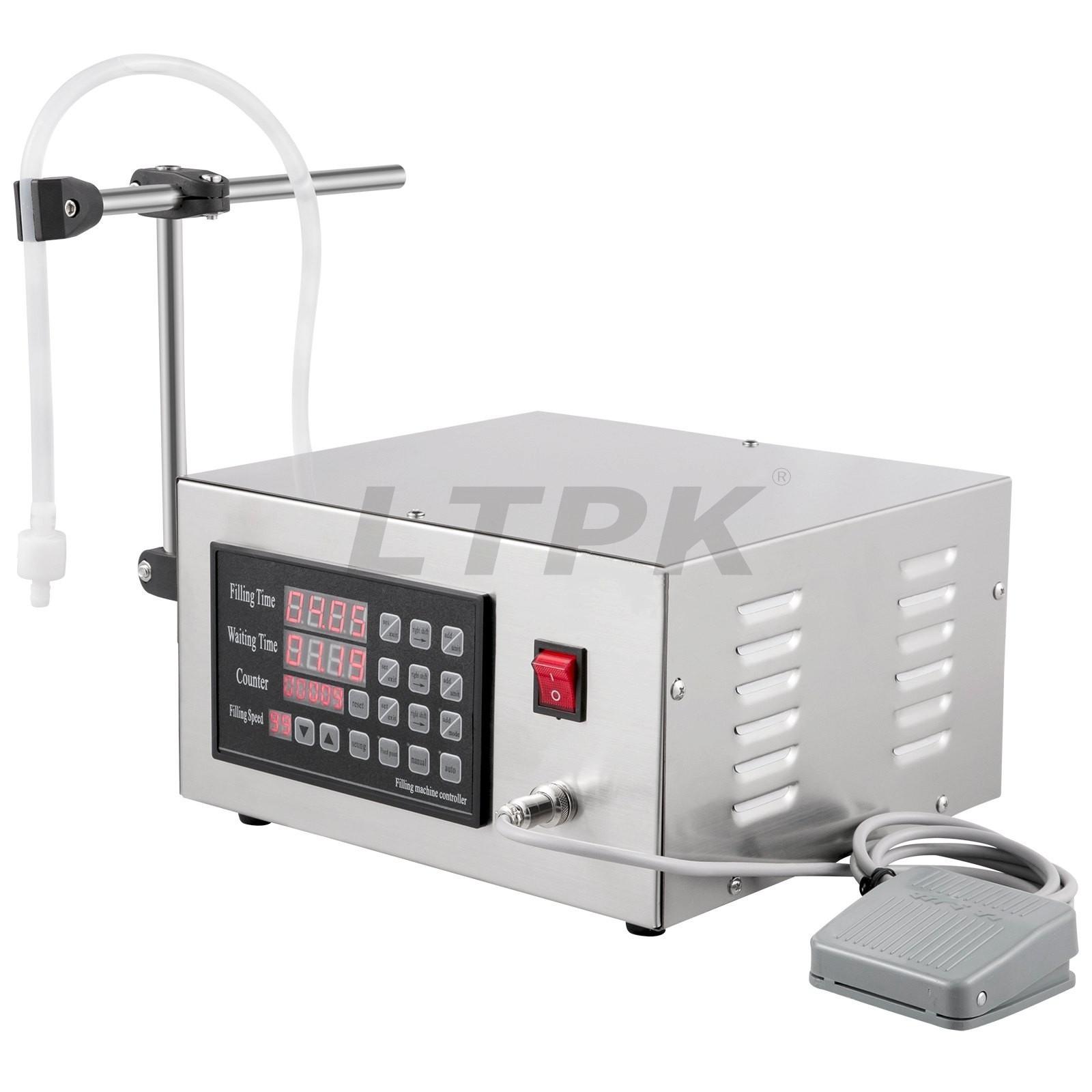

Foot Switch
The liquid filling machine is designed to have a footswitch to control the process. A footswitch plus self-priming function, no need to pour, convenient, safe to use, and also save user's energy.
Package Content
* 1 x Filling Machine
* 1 x Power Cord
* 1 x Screwdriver
