Description
Description：

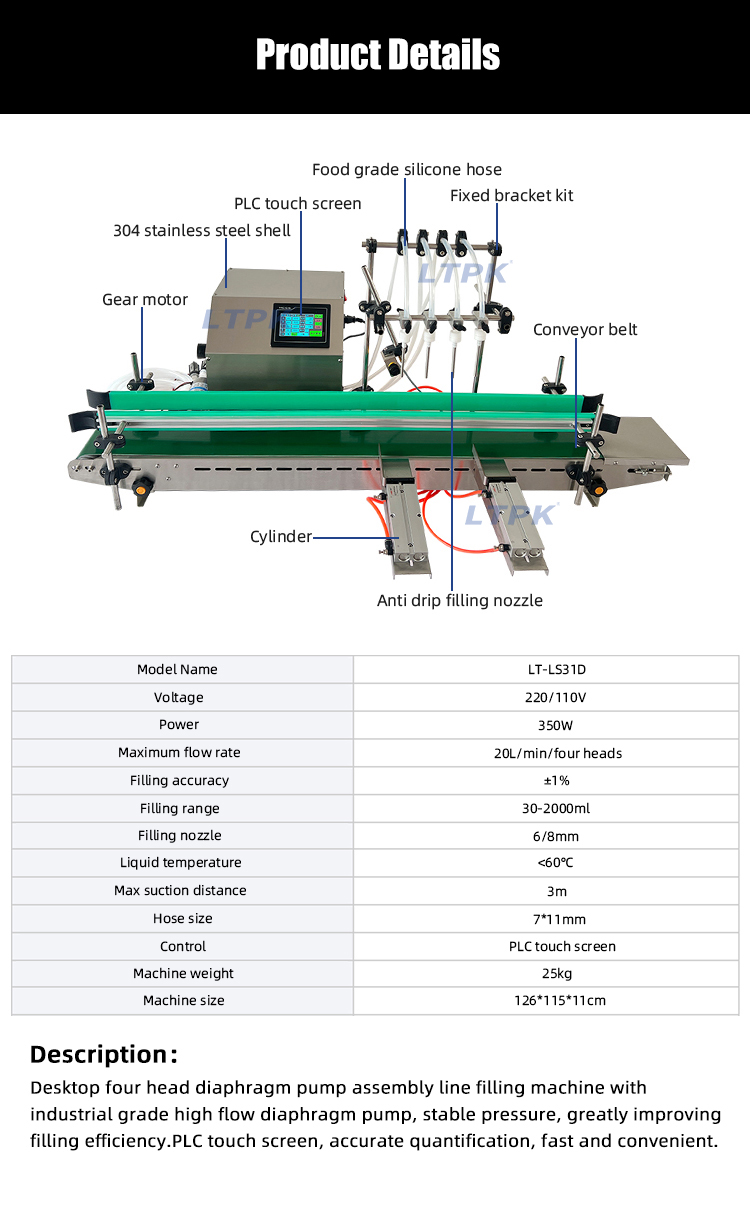

Desktop four head diaphragm pump assembly line filling machine with industrial grade high flow diaphragm pump, stable pressure, greatly improving filling efficiency.PLC touch screen, accurate quantification, fast and convenient.
Application:
suitable for low viscosity liquid without particle impurities, such as juice, olive oil, milk, beverage, mineral water, etc.
Technical parameters：
Model | LT-LS31D |
Voltage | 220/110V |
Power | 350W |
Maximum flow rate | 20L/min/four heads |
Filling accuracy | ±1% |
Filling range | 30-2000ml |
Filling nozzle | 6/8mm |
Liquid temperature | <60℃ |
Max suction distance | 3m |
Hose size | 7*11mm |
Control | PLC touch screen |
Machine weight | 25kg |
Machine size | 126*115*11cm |
