Description
Description：

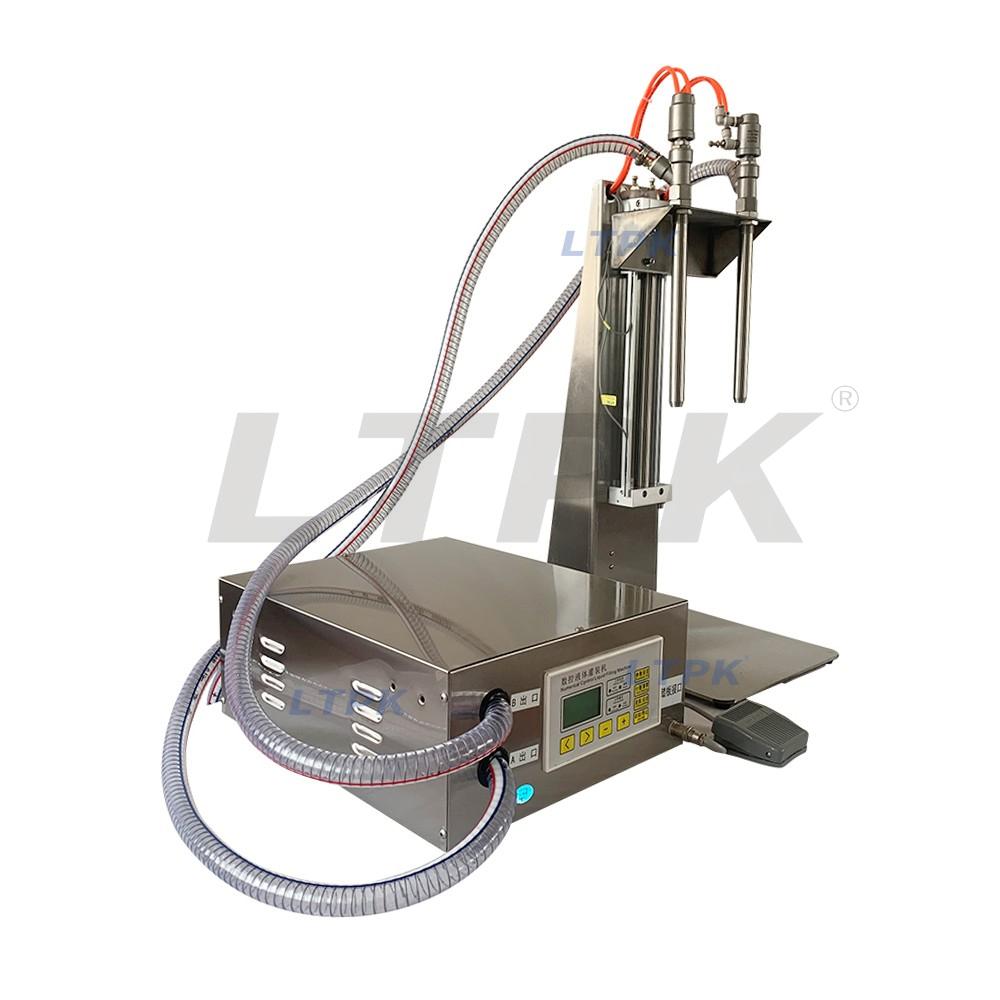

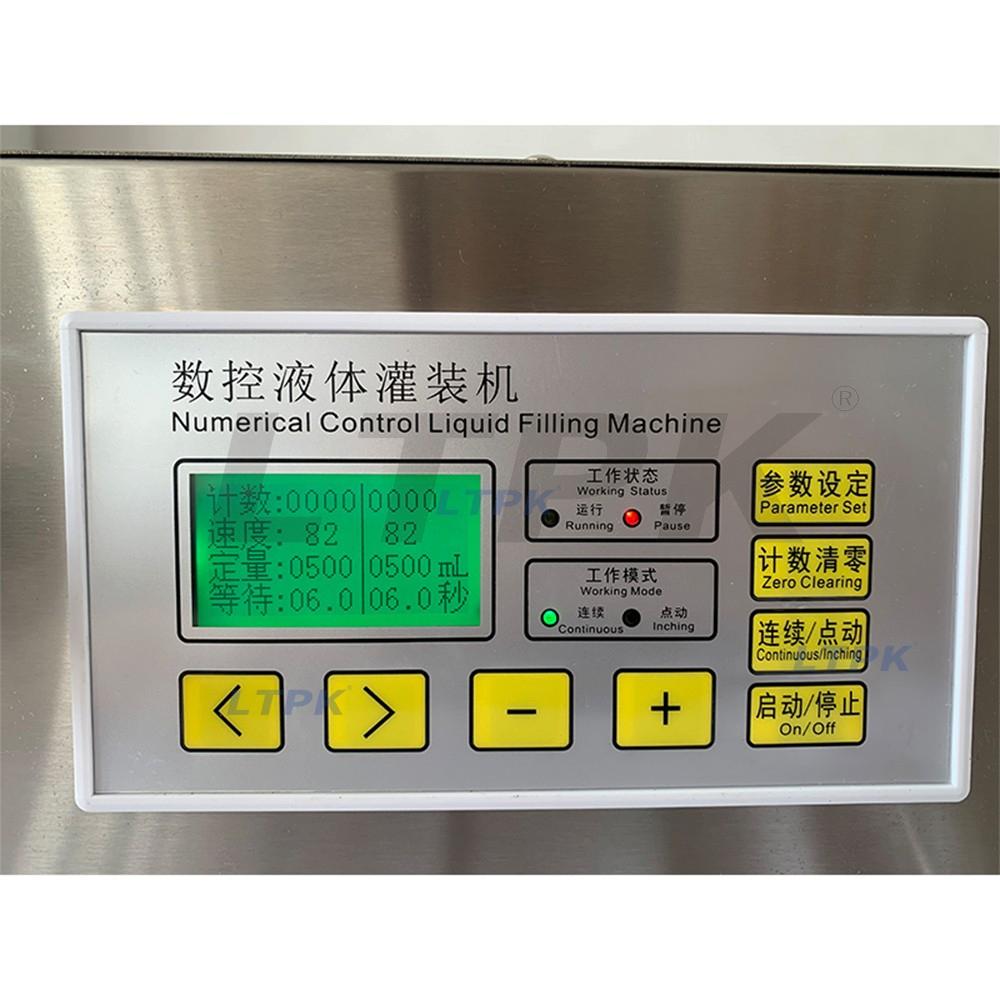

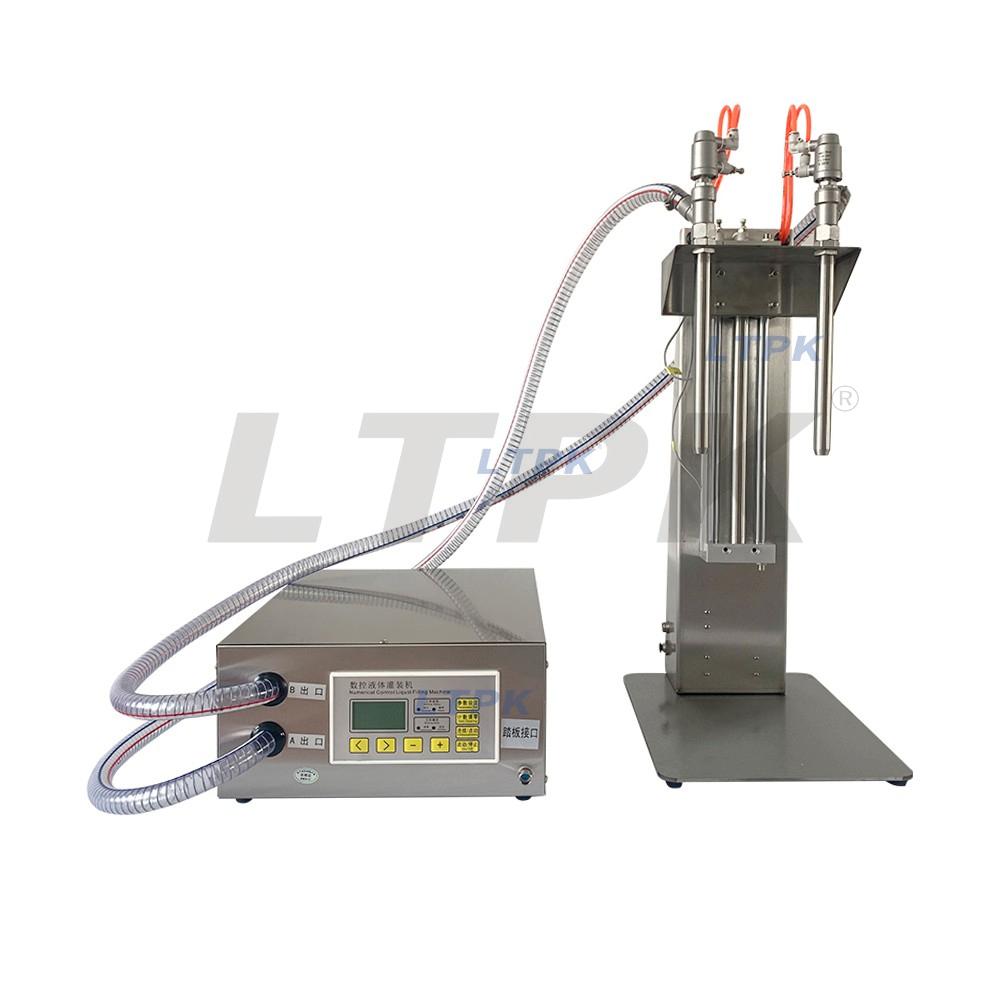

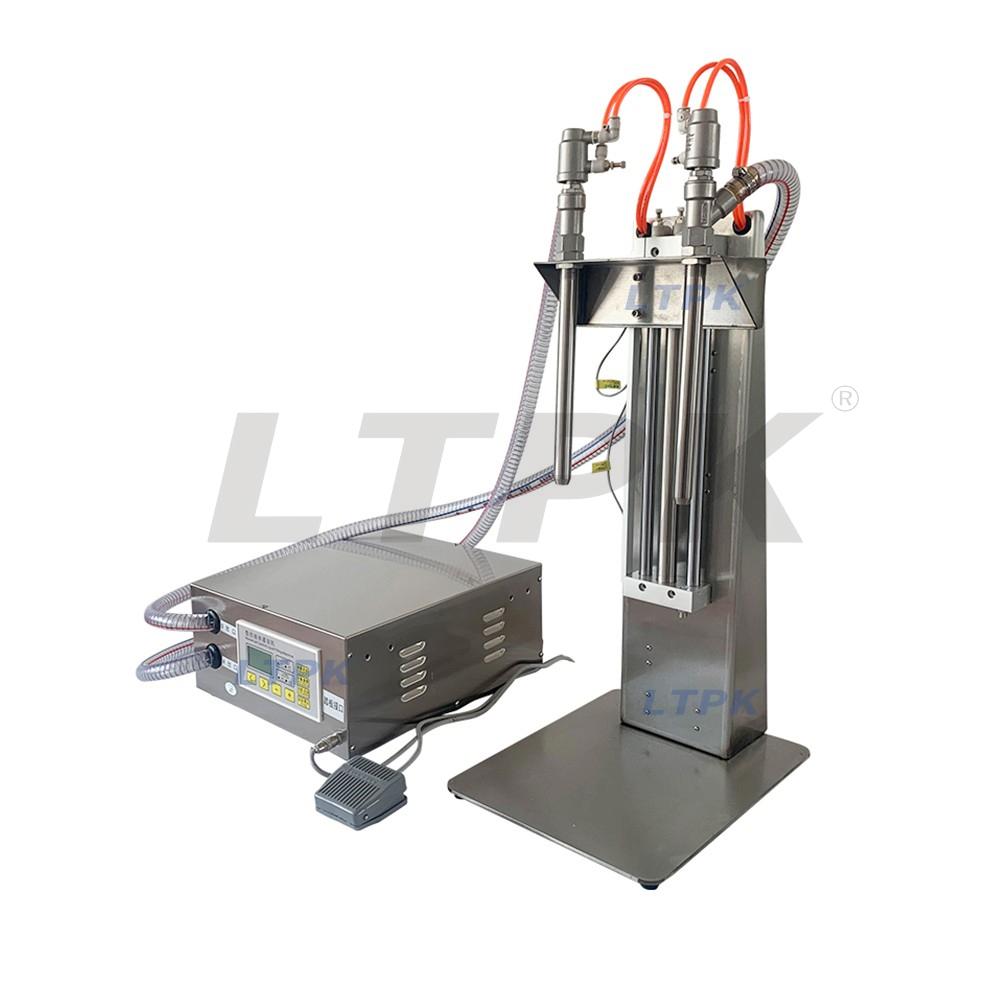

Semi automatic double head liquid filling machine with lifting head,can effectively prevent the overflow of foaming liquid.Large flow,the flow for each head is 17L/min, efficient and stable.Intelligent control, accurate filling, fast and convenient
Application:
Wide range of application,filling of various liquids.Such as beverage,Soy sauce, vinegar, fertilizer, laundry detergent,edible oil, milk, essence, ink,etc.

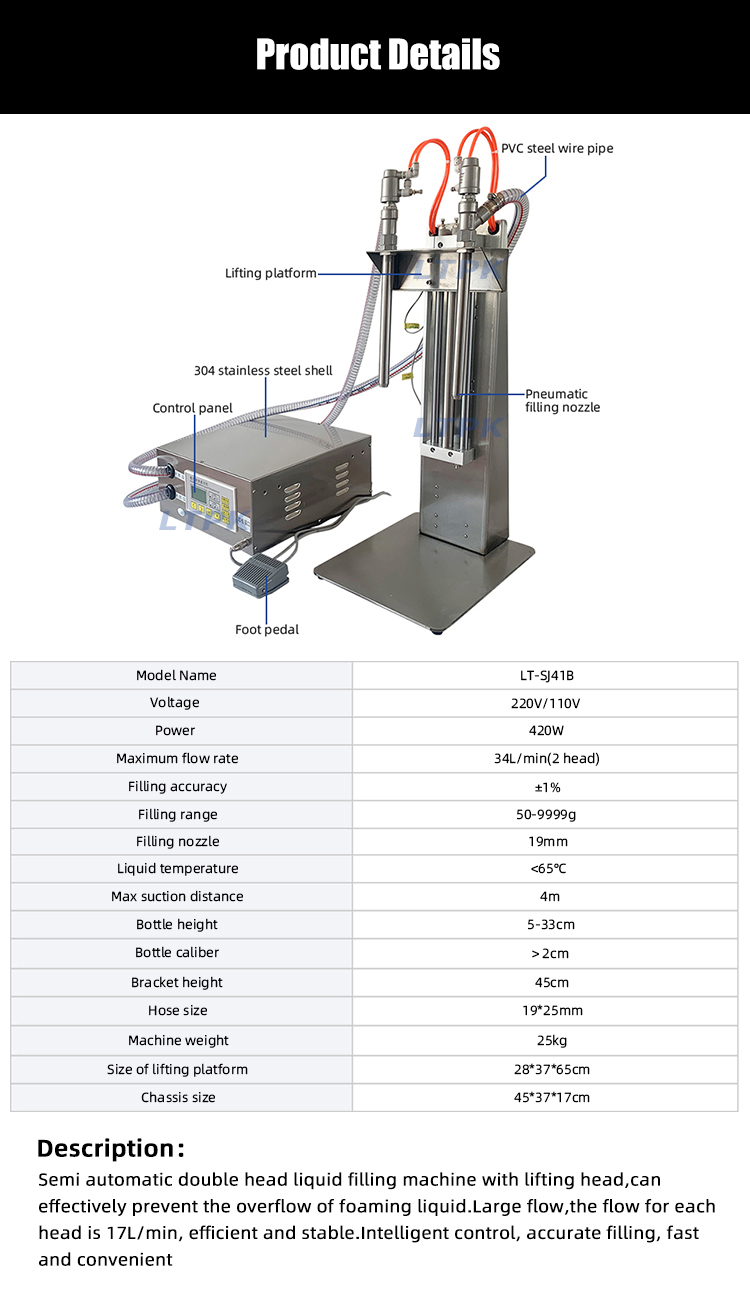

Technical parameters：
Model | LT-SJ41B |
Voltage | 220/110V |
Power | 420W |
Maximum flow rate | 34L/min(2 head) |
Filling accuracy | ±1% |
Filling range | 50-9999g |
Filling nozzle | 19mm |
Liquid temperature | <65℃ |
Max suction distance | 4m |
Bottle height | 5-33cm |
Bottle caliber | ＞2cm |
Bracket height | 45cm |
Hose size | 19*25mm |
Machine weight | 25kg |
Size of lifting platform | 28*37*65cm |
Chassis size | 45*37*17cm |
