Description

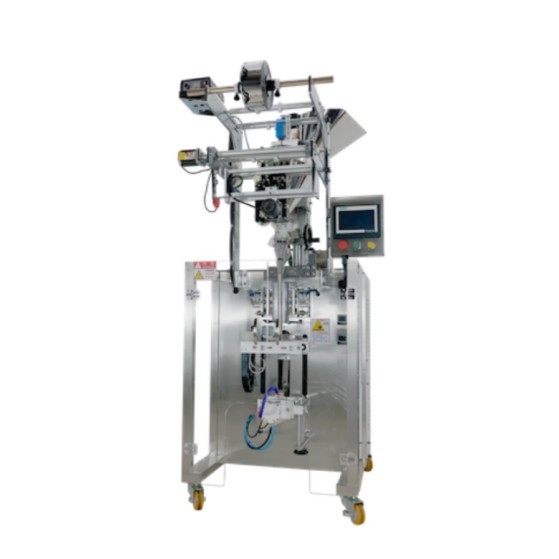

LT -65JL-Y Round corner powder packing machine
Characteristic
１、The machine is suitable for the food, medicine, chemical industry, cosmetics industry of powder of measurement packing.
２、All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
３、The touch screen operation, PLC control, servo motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
４、Packing material：BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene,
Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on.
Sealing Type:Three sides/Back Side
Technical Parameters
Measuring Scope：1 - 20 g（2.6 - 60 ml）
Packing Speed：30 - 60 bags/min
Bag Size ： ( L ) : 30 - 180 mm
( W ) : 20 - 75 mm
Dimension ( L * W * H )：850 * 1100 * 1900 mm
Weight：400 kg
Total Power：220V / 50Hz / 1.4kw
Optional Equipments
Coding Machine
Lower cutter
Radius tool
