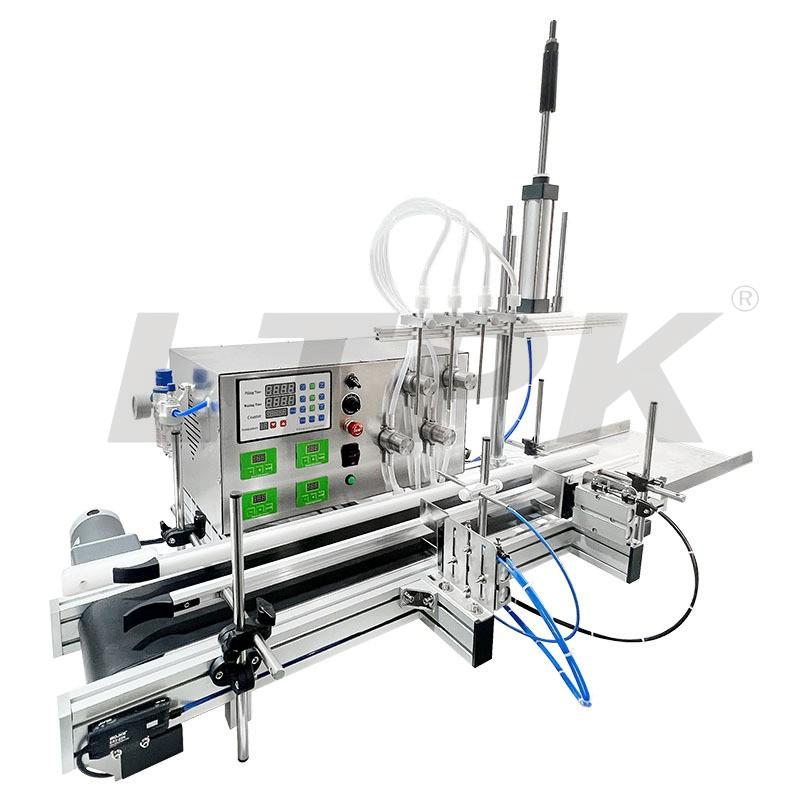

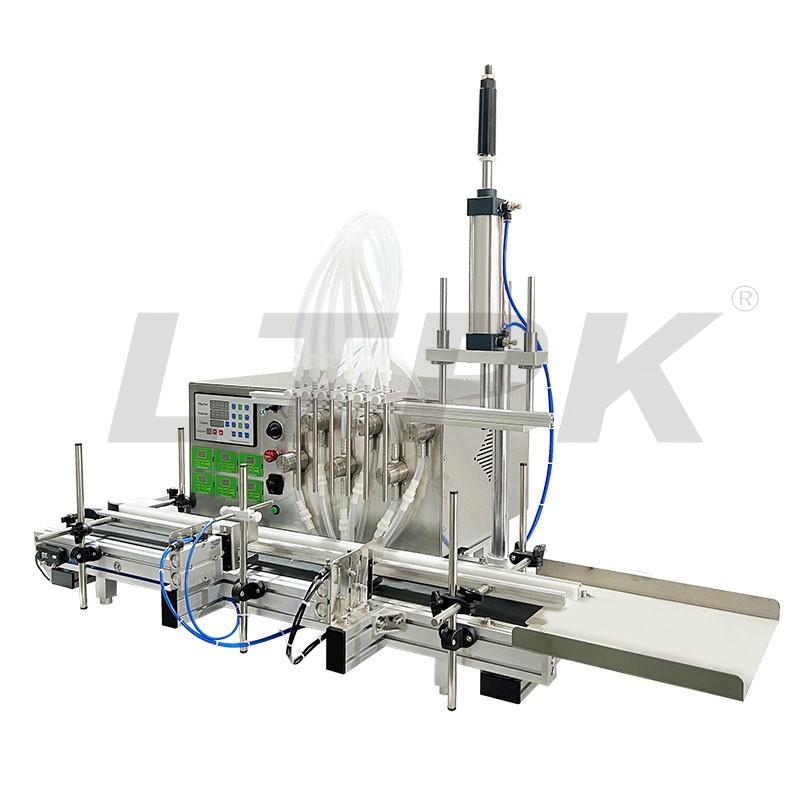

LTPK LT-DMPF4HL 4 DIVING NOZZLES MAGNETIC PUMP LIQUID FILLING MACHINE WITH CONVEYOR

LTPK LT-DMPF4HL 4 DIVING NOZZLES MAGNETIC PUMP LIQUID FILLING MACHINE WITH CONVEYOR

Product Item： LT-DMPF4HL

Power supply 110/220V 50-60HZ

Filling accuracy ≤±1% (For water)

Diameter of Flling Nozzle 6/8mm

Delay Range 0.01-999.9s

Category：Small Automatic Filling Machine

Description

Desktop full automatic machine is very efficient with high cost performance. It is widely used in all kinds of industries such as essential oils,perfumes,juice liquid etc.Machine with magnetic pump is good choice for low viscous corr,a little foamy liquid.316 stainless steel pump can use for very high temperature liquid fill.
Application：
It is suitable for various corrosive,low viscosity and non-particulate liquids,such as:various chemicals (oil, liquor,alcohol,eye drops,syrup),chemicals(solvent,acetone),oil (edible oil,essential oil) ),cosmetics (toner,makeup remover,spray),food (100 degree high temperature,such as milk,soy milk), beverage (juice,fruit wine),seasoning (soy sauce vinegar) and other non-particulate liquid;high and low foam liquid ( Care solution,detergent)

Technical Parameters

Machine model	LT-DMPF4HA	LT-DMPF4HB
Power supply	110/220V 50-60HZ
Maximum flow velocity	5500ml/min (Each nozzle and base on water)	9000ml/min (Each nozzle and base on water）
Working speed	20-30 bottles/min (based on 50-1000ml filing volume)	20-40 bottles/min (based on 50-1000ml filling volume)
Air pressure	0.3-0.4MPa
Filling accuracy	≤±1% (For water)
Diameter of Flling Nozzle	6/8mm
Delay Range	0.01-999.9s
Count Range	1-99999 Times
Filling Volume	3-1000ml(220V)3- 500ml(110V)
Size of air compressor connector	OD8mm
Bottle height	＜220mm(Can be customized,max height 300mm)
Package Size	About 1110650420mm	About 1110650420mm
Gross weight	About 50.5kg	About 51.5kg

Product Details

Simple operation panel,can show the detailed setting parameter like the filling time and filling speed,these can be simply controlled according to production need during work.

There are 4 filling nozzles and each one of them can be controlled separately.The height of filling nozzle can be changed by adjusting bracket height.

Made of high quality stainless steel magnetic pump,this kind of pump requires lttle maintenance and has the advantage of high
accuracy which makes it good for filling solution, essential oil,ink etc.

The high quality electric eye can detect passing by containers precisely and control the machine to fill liquid, achieves
automated production.This can reduce the production error.

The chain conveyor has larger weight capacity which is good for transport heavier products.The speed regulator is used to control working speed of conveyor belt.This makes sure the machine can work with other machine better and more convenient to adjust the
machine.
