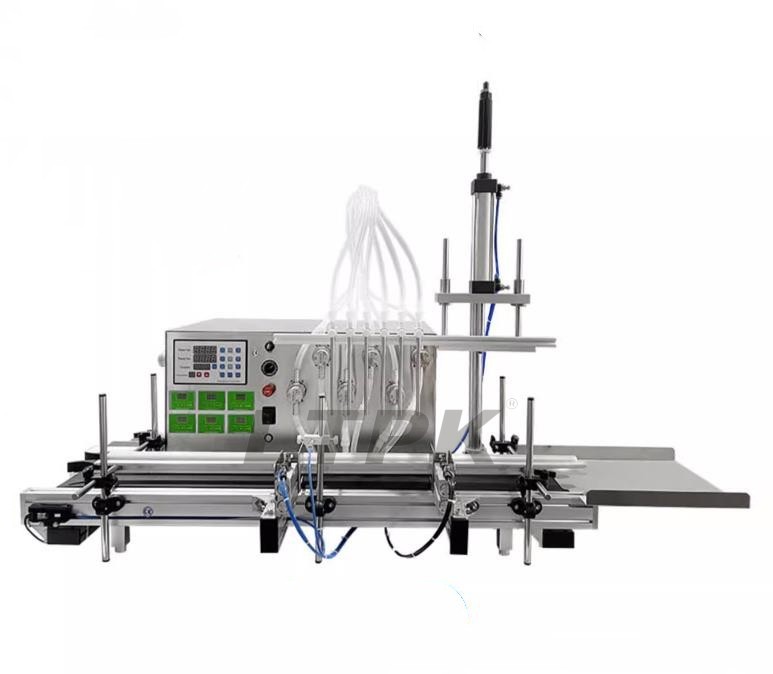

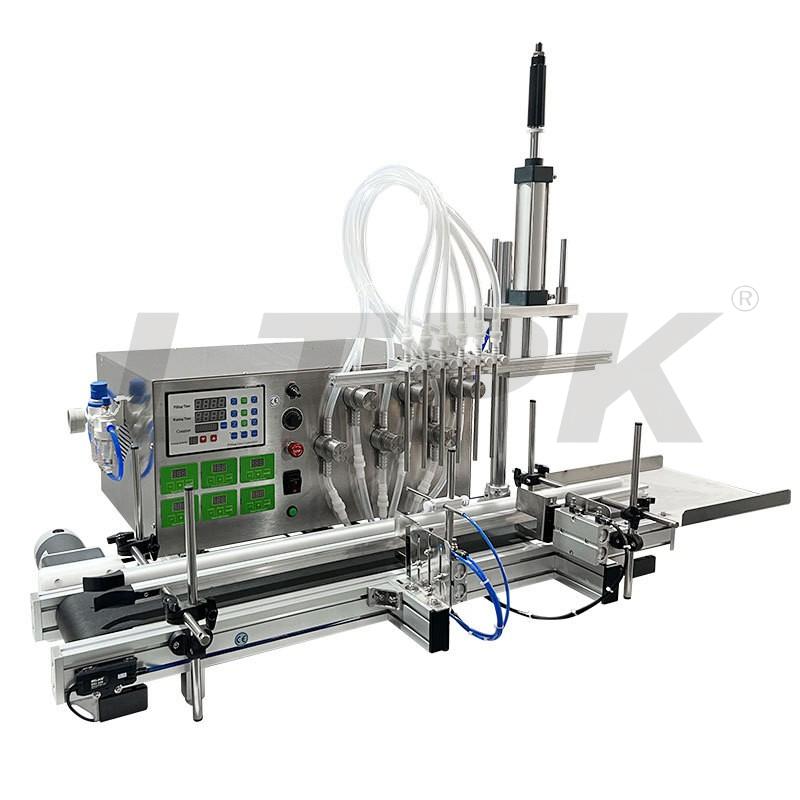

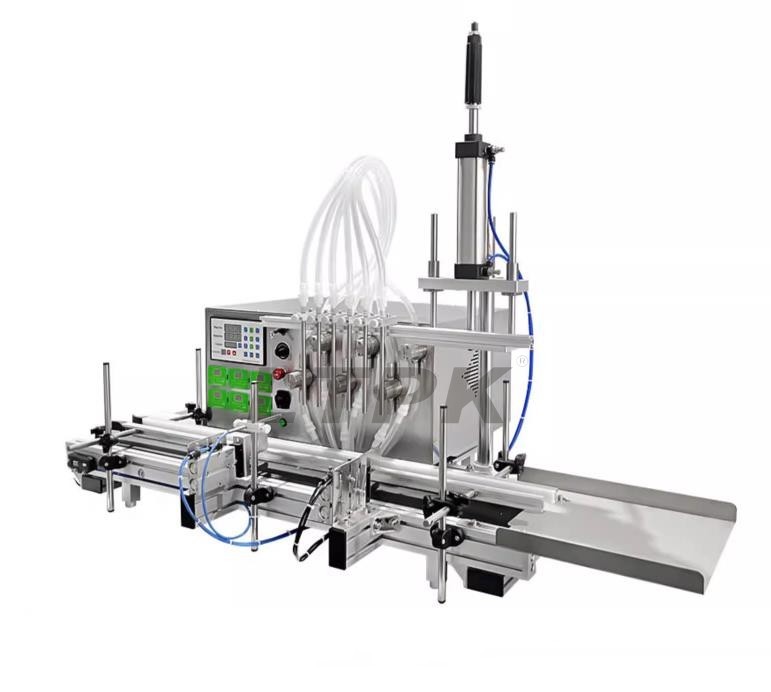

LTPK LT-DMPF6HL AUTOMATIC 6 DIVING NOZZLES MAGNETIC PUMP LIQUID FILLING MACHINE

LTPK LT-DMPF6HL AUTOMATIC 6 DIVING NOZZLES MAGNETIC PUMP LIQUID FILLING MACHINE

Product Item：LT-DMPF6HL

Power supply 110/220V 50-60HZ

Air pressure 0.3-0.4MPa

Delay Range 0.01-999.9s

Count Range 1-99999 Times

Category：Small Automatic Filling Machine

Description

The automatic tabletop filling machine is suitably applied on low viscosity liquid like water,juice,perfume milk,essential oil etc.This machine is equipped with magnetic pump,it is driven by the force of magnets.It does not have the shaft coming out of the
pump casing,hence there is no need for shaft sealing devises such as gland packing or mechanical seals.The liquid will not leaking in this situation.As a result,people working on or near the pump are not exposed to dangers from hazardous,corrosive,flammable or
explosive fluids, and other toxic chemicals.In addition,expensive liquids are not wasted.
Application：
This filling machine is widely used in food,beverage,chemical,household products,personal industries.

Technical Parameters

Machine model	LT-DMPF6HLA	LT-DMPF6HLB
Power supply	110/220V 50-60HZ
Maximum flow velocity	5500ml/min (Each nozzle and base on water)	9000ml/min (Each nozzle and base on water）
Working speed	30-40 bottles/min (based on 50-1000ml filling volume)	40-55 bottles/min (based on 50-1000ml filling volume)
Air pressure	0.3-0.4MPa
Filling accuracy	≤±1% (For water)
Diameter of Flling Nozzle	6/8mm
Delay Range	0.01-999.9s
Count Range	1-99999 Times
Filling Volume	3-1000ml(220V)3- 500ml(110V)
Size of air compressor connector	OD8mm
Bottle height	＜220mm(Can be customized,max height 300mm)
Package Size	About 1105715435mm
Gross weight	About 66kg	About 78kg

Product Details

Simple operation panel,can show the detailed setting parameter like the filling time and filling speed,these can be simply controlled according to production need during work.

Designed into 6 diving filling nozzle,each nozzle can be controlled separately,it is suitably applied on filling different kinds
of liquid at the same time.

The high quality magnetic pump is made of 304 stainless steel,food grade stainless steel is more suitable for filling drinks,ensure the production quality.We can also customize the 316 magnetic pump if you need it.

The high quality electric eye can detect passing by containers precisely and control the machine to fill liquid, achieves
automated production.This can reduce the production error.

The chain conveyor has larger weight capacity which is good for transport heavier products.The speed regulator is used to control working speed of conveyor belt.This makes sure the machine can work with other machine better and more convenient to adjust the
machine.
